DJ LED Screen Buyer’s Guide: How to Choose the Right Display for Your Booth
A DJ LED screen is a modular full-color video display built into or wrapping a DJ booth, delivering synchronized visuals during live performances. Choosing the right one comes down to four decisions: (1) type — curved, foldable, seamless, or drawer; (2) pixel pitch — P2.5 to P3.9 for most DJ booth distances; (3) brightness — 800–1,500 nits indoor, 5,000+ nits outdoor; (4) protection — GOB sealing for close-range venues where drinks and impact are a real risk. Get those four right and everything else is configuration.
What Is a DJ LED Screen?

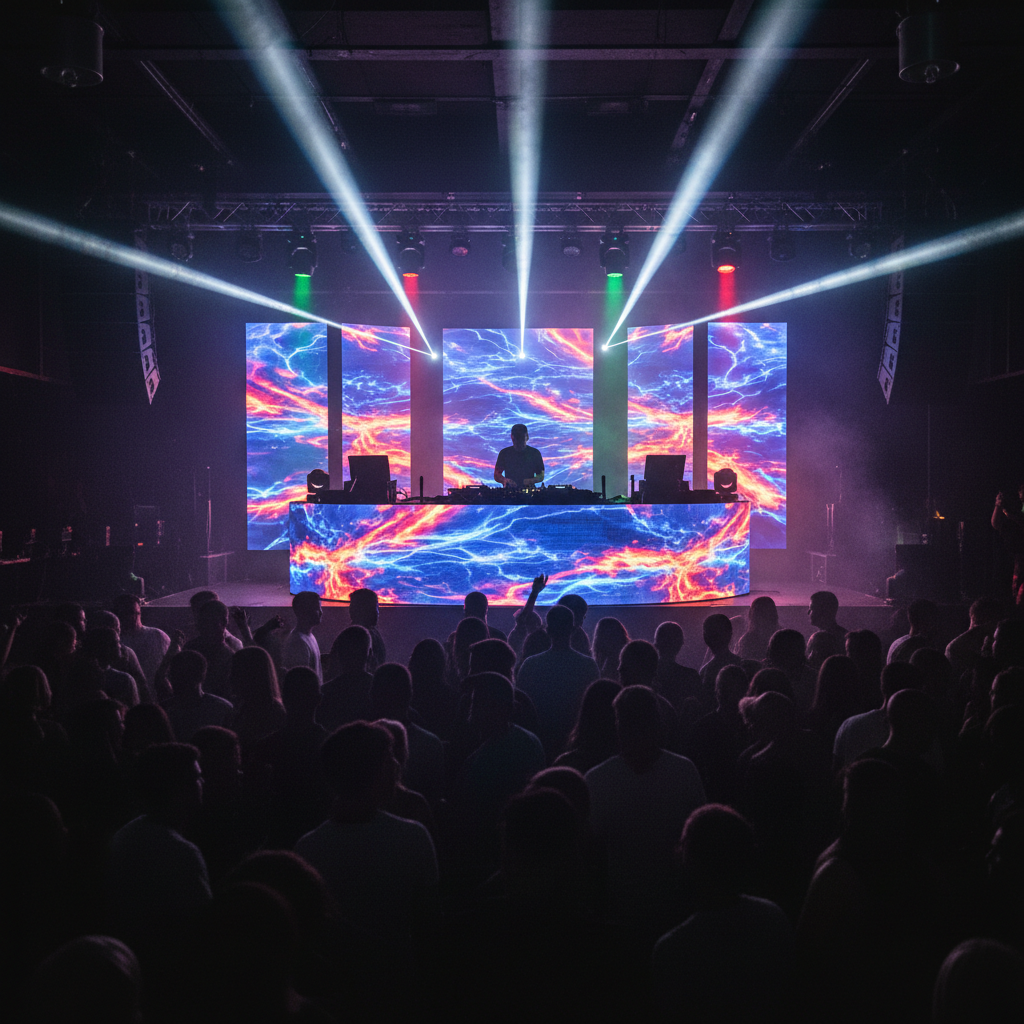

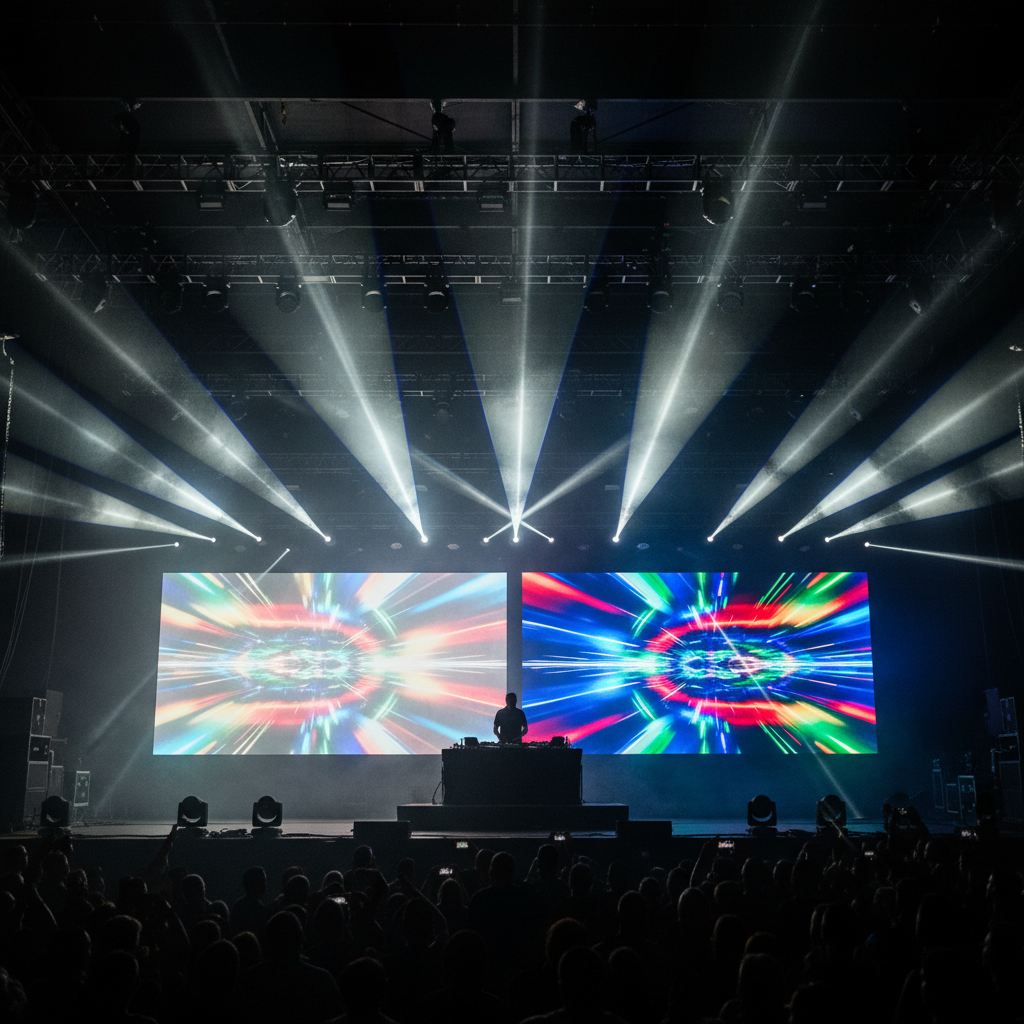

A DJ LED screen is a modular full-color LED panel system configured as a 270° wrap, flat facade, or 3-sided seamless backdrop around the DJ workstation. Unlike video projection — which loses contrast under stage lighting — or static LED lighting — which can’t display dynamic video — a DJ LED screen integrates directly into the booth structure and delivers full HD or 4K video at any ambient light level. For a broader look at LED display types used in events, that context helps when comparing options.
In the event ecosystem, a DJ screen works alongside stage lighting, a dance floor, and a PA system, functioning as the visual anchor of the room that syncs with music and sustains energy across a full set.
6 Types of DJ LED Screens — Which Fits Your Setup?
The right type depends on how you deploy: fixed nightclub install, traveling rental fleet, or solo DJ hauling gear alone.
| Type | Best For | Pixel Pitch | Setup Time | Portability | Key Trade-off |
|---|---|---|---|---|---|
| Curved 270° Wrap | Nightclub installs, premium rentals | P1.95–P3.91 | 45–60 min | Low | Immersive; eliminates flat-panel seam effect |
| Foldable / Portable | Mobile DJs, traveling companies | P2.5–P4 | 20–30 min | High | Fits in a car trunk; smaller screen surface |

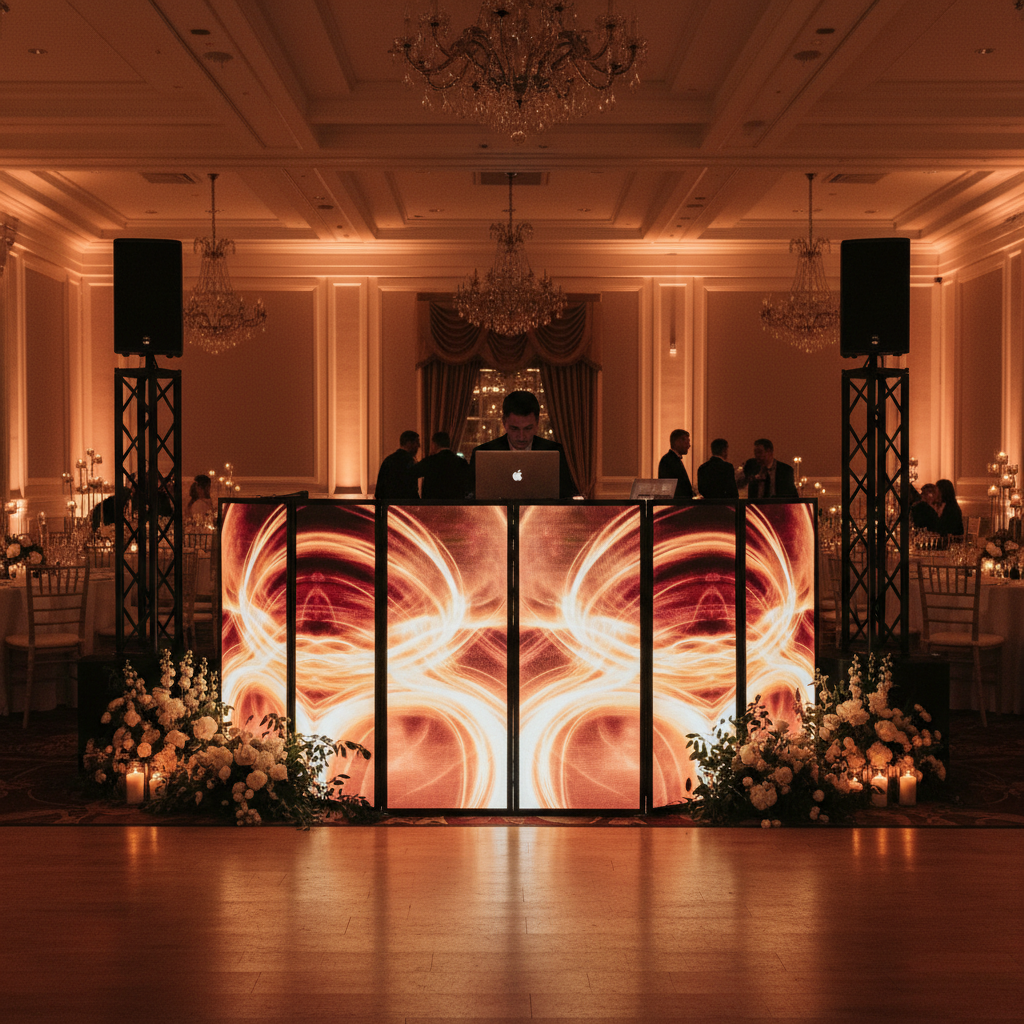

| Seamless 3-Sided | Premium rental fleets, high-end weddings | P1.95–P3.91 | 60+ min | Medium | Best image continuity across panels |
| Drawer-Style | Working DJs needing on-site storage | P2.5–P4 | 30 min | Medium | Cable and equipment storage built into base |
| Semi-Circular / Podium | Fixed installs — lounges, hotel bars | P2.5–P3.9 | N/A | None | Strong visual centerpiece; zero portability |
| Flat Facade (front panel only) | Budget setups, retrofits | P3.9–P5 | 15 min | High | Lowest entry cost; least visual impact |
Rental fleets: seamless 3-sided or curved 270° maximizes the premium you can charge per booking.

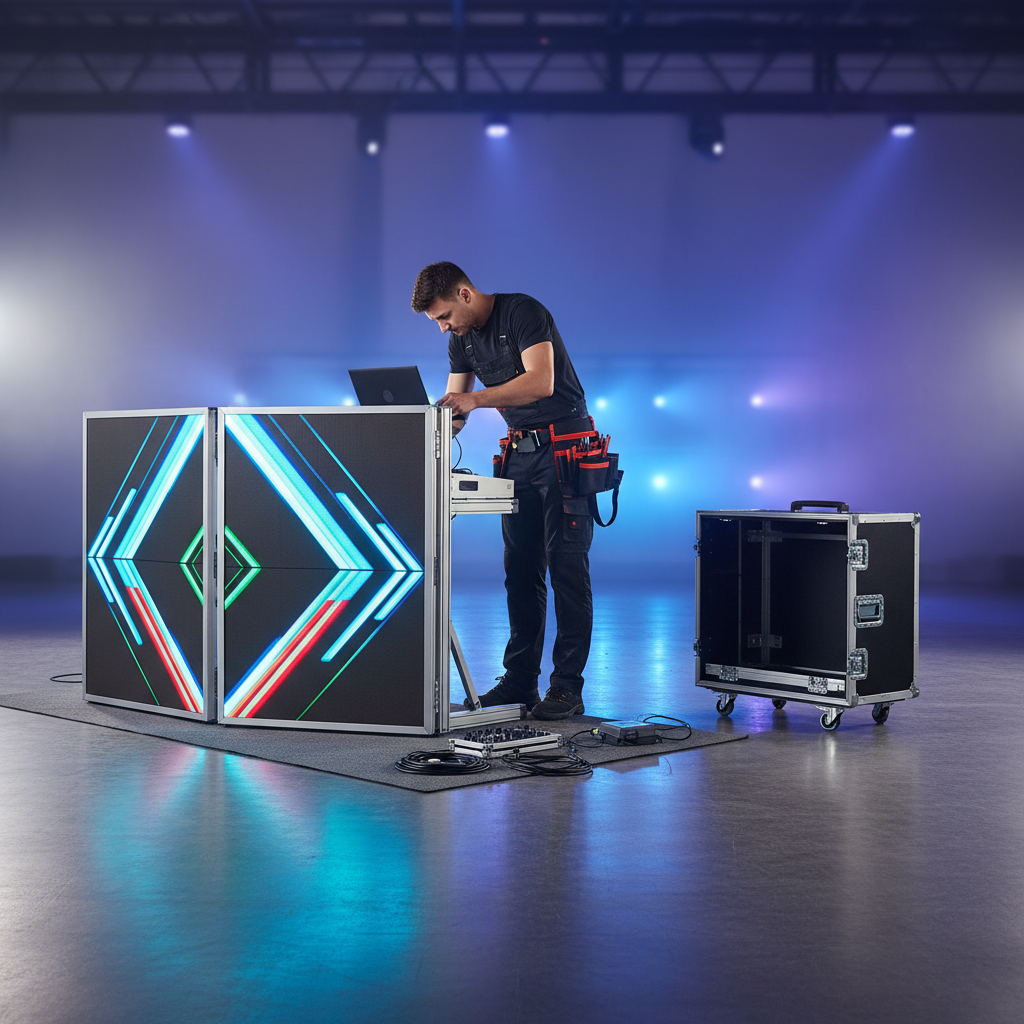

Mobile DJs: foldable is the only practical option — 30-minute single-person setup, one vehicle.
Permanent nightclub install: curved or semi-circular, where portability is irrelevant and visual impact justifies the investment. For a full breakdown of what else goes into a DJ setup, see What Does a DJ Booth Setup Need?
How to Pick the Right Pixel Pitch

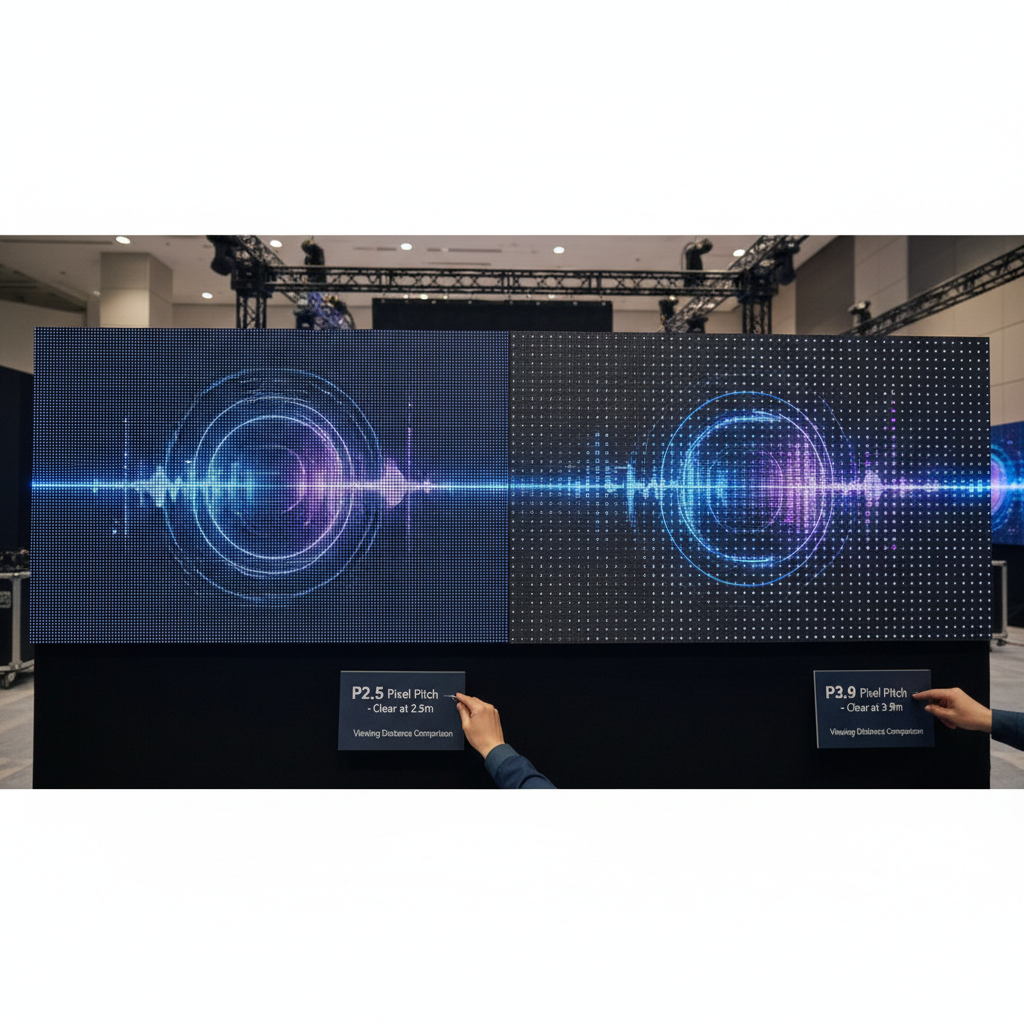

The rule: pixel pitch number in millimeters ≈ minimum comfortable viewing distance in meters. A P3.9 panel looks sharp from 4 m but pixelated at 1.5 m.
| Audience Distance | Recommended Pitch | Typical Use Case |
|---|---|---|
| 1–2 m | P1.5–P2.5 | Close-quarter clubs, text-heavy content |
| 2–4 m | P2.5–P3.9 | Most DJ booths — the sweet spot |
| 4–6 m | P3.9–P5 | Large stage booths, ballrooms |
| 6 m+ | P5–P6.25 | Outdoor festivals |
P2.5–P3.9 covers roughly 90% of real-world DJ booth scenarios as of 2026 (based on product range data from TOP Dance and comparable LED display manufacturers). The cost implication is significant: dropping one full pitch tier (e.g., P3.9 → P2.5) roughly doubles cost per m². For guidance on matching display size to your specific venue, see LED display size for venue. Only upgrade to fine pitch if your audience stands within 2 m of the screen — at longer distances, the extra resolution isn’t perceptible.
Brightness, Refresh Rate & Color — The Specs That Actually Matter
Brightness (nits)

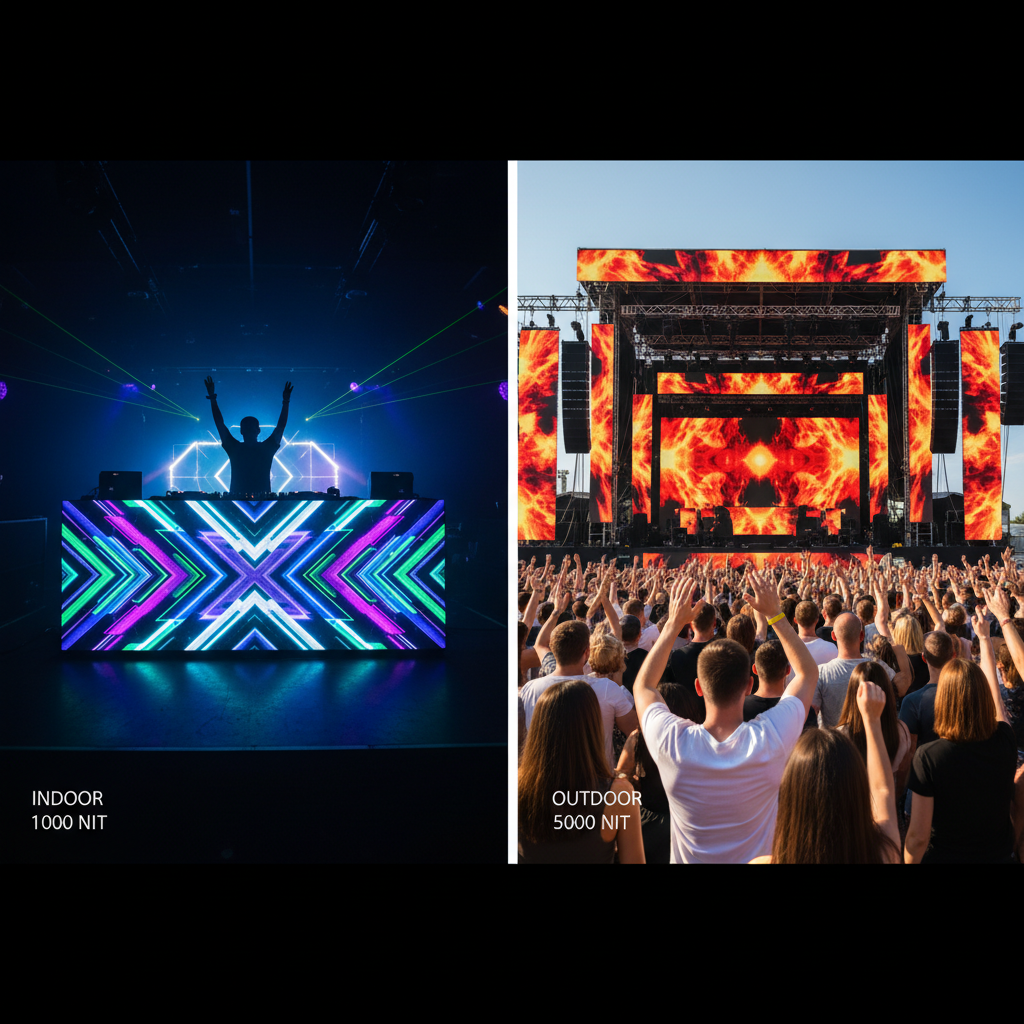

800–1,500 nits is sufficient for indoor clubs and bars. A common mistake is over-speccing: a 3,000-nit panel in a dark venue washes out video contrast and makes dark scenes appear flat grey. 1,000 nits is the premium indoor standard for most DJ booth LED setups. Outdoor festival booths require 5,000+ nits to stay visible in direct sunlight.
Refresh Rate (Hz)

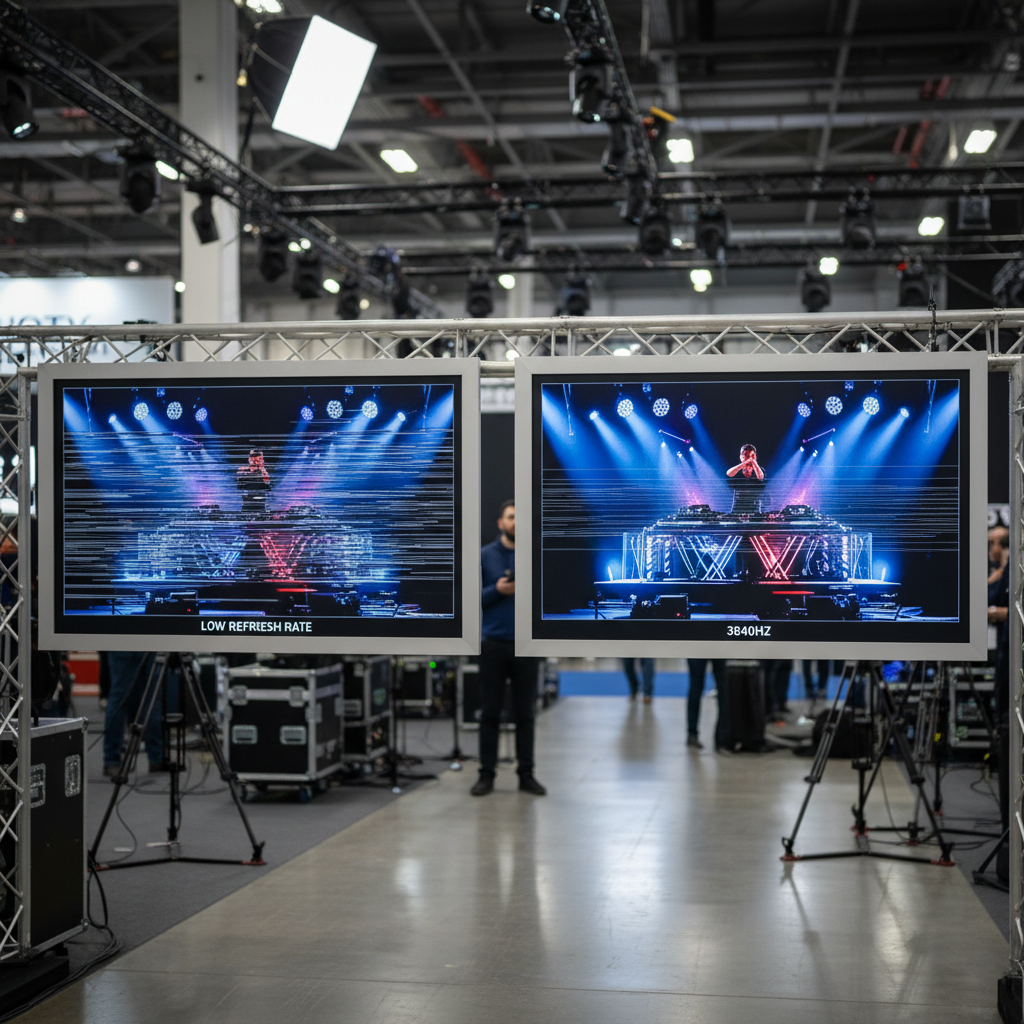

Refresh rate is critical for any event that gets livestreamed or recorded. Camera shutters register flicker below 1,920 Hz — horizontal banding appears in footage even when the screen looks clean to the naked eye.
- 1,920 Hz minimum — flicker-free for human viewing
- 3,840 Hz — industry premium; required for EDM fast-cut visuals and livestreaming
- 7,680 Hz — broadcast and top-tier streaming only
If your events are regularly shot by a videographer or streamed online, 3,840 Hz is the minimum worth buying.
Color Depth & Contrast
16-bit color depth outperforms 14-bit in dark scenes with subtle gradients — the difference is visible in club environments where blacks matter. In nightclub settings, contrast ratio has more real-world impact than peak brightness: a high-contrast panel at 1,000 nits outperforms a low-contrast panel at 1,500 nits in a dark room. HDR support is available on premium 2026 models.
Protection — GOB, COB & IP Ratings

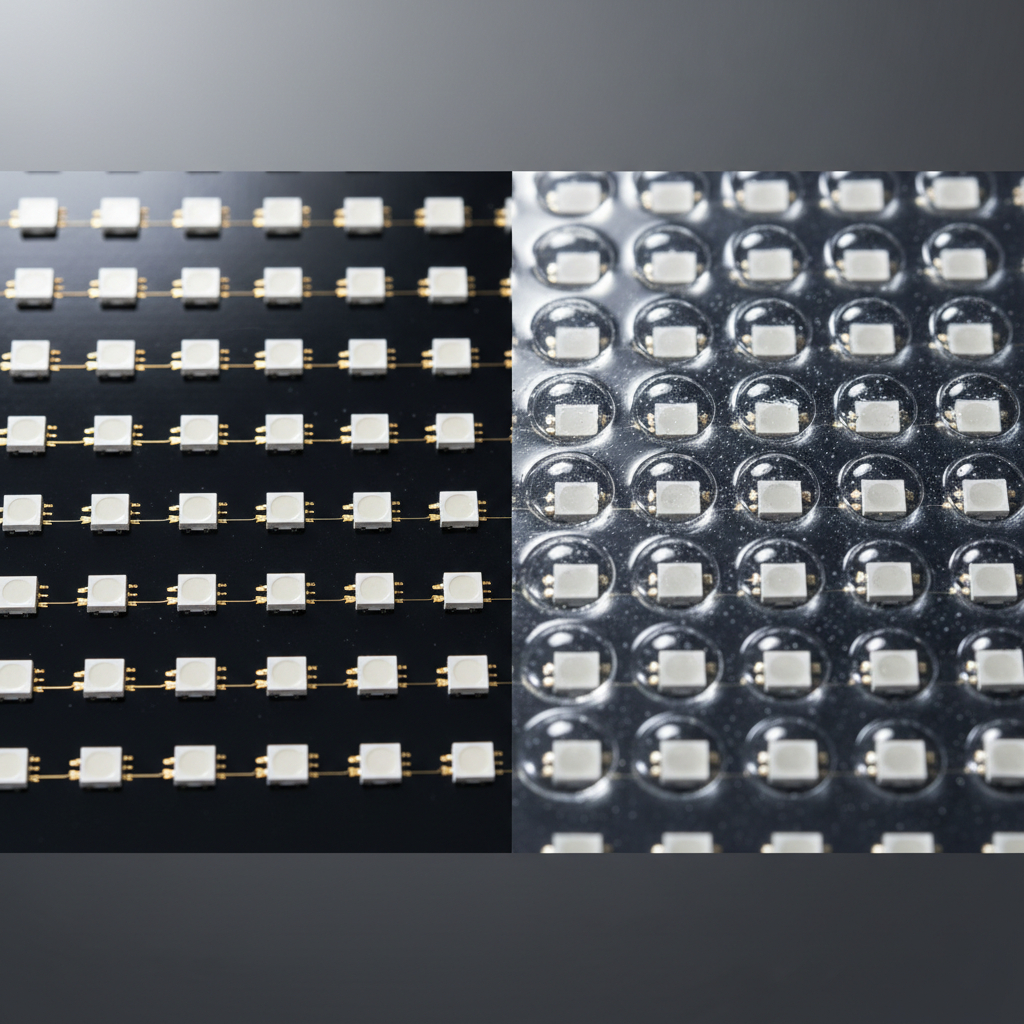

GOB (Glue On Board) seals each LED with epoxy resin, protecting against dust, liquid spills, and physical impact. For close-range DJ booths where drinks get knocked over and crowds press against the structure, GOB protection pays for itself in avoided repairs — at a 20–35% cost premium over standard panels.
COB (Chip on Board) offers a similar protection profile at higher pixel density, common on P1.x fine-pitch panels.
IP rating: indoor booth installations require only IP33. Any outdoor or festival deployment needs IP65+ — sealed against water jets and dust ingress. Note: IP65 means protected against directed water jets, not full submersion; avoid pooled water or sustained rain exposure without additional shelter.
Quick decision rule: if your booth is within arm’s reach of the crowd, specify GOB. If it sits on a raised stage or behind a barrier, standard panels are fine. Also consider a front-maintenance LED screen for installs against walls — modules swap from the front without rear access.
Why TOP Dance for DJ LED Screens
13 Years of Event LED Manufacturing
TOP Dance has built event LED displays since 2013 — operating from a 20,000 m² factory with over 600,000 LED tiles in annual output. That production scale means consistent quality across large orders and reliable spare-parts availability for long-term fleet operators.
Full Range, One Supplier
The catalog covers all six DJ booth screen types: curved 270°, foldable portable, seamless 3-sided, drawer-style, semi-circular, and flat facade. Rental fleets can standardize on one supplier and one spare-parts pool instead of managing multiple brands.
Proven Specs Across the Line
Every model ships with P1.95–P3.91 pixel pitch, 3,840 Hz refresh rate, 1,000-nit brightness, and optional GOB protection. The patented magnetic-snap modular system means tool-free assembly — single technician, under 30 minutes. Front and rear maintenance configurations are available depending on installation context.
3-Day US Delivery — No 30-Day Wait

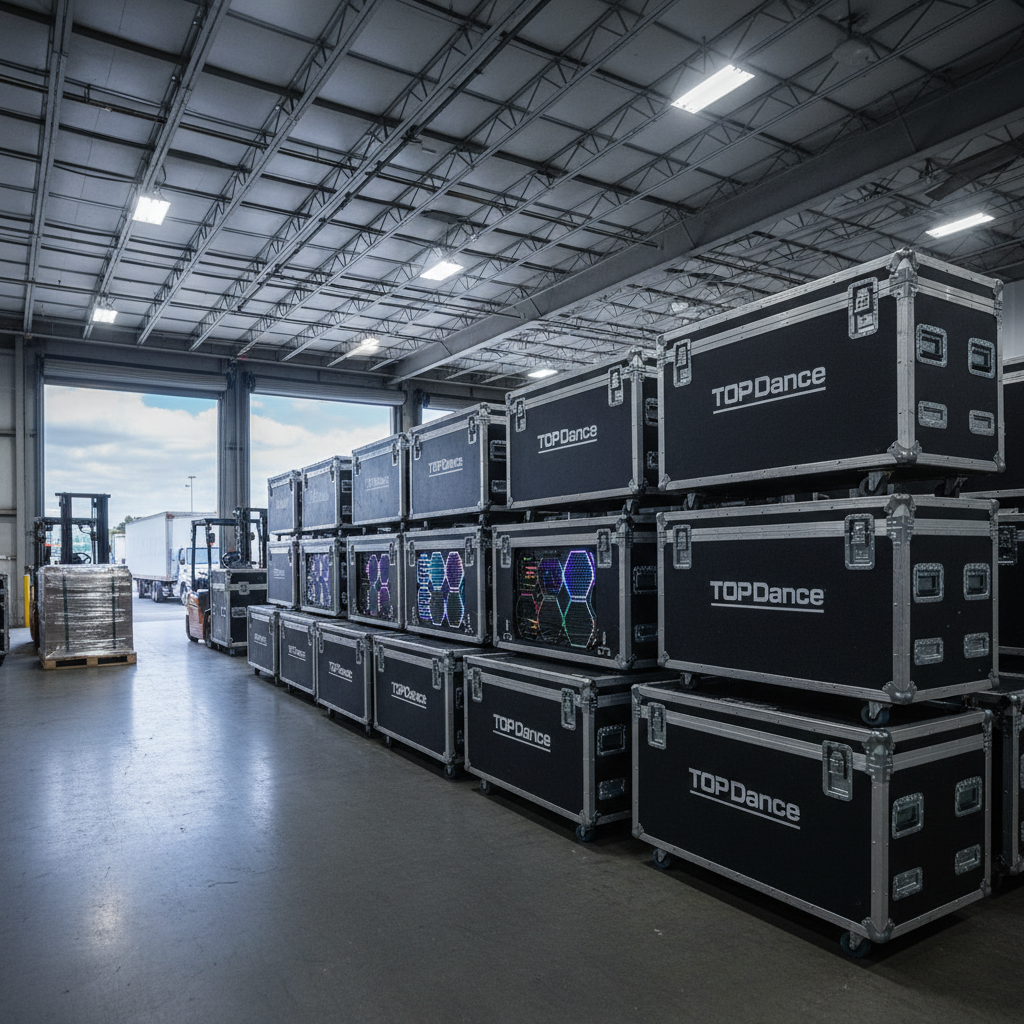

Stock is held in Los Angeles, Chicago, and Florida warehouses. Domestic orders ship in 3 days versus 25–35 days for direct overseas freight. For event rental companies booking on short notice, that lead-time difference is the difference between landing a contract and losing it.
B2B-only model — no direct rental activity — keeps the channel clean for resellers and fleet operators. Factory-direct pricing runs approximately 30% below comparable specs sourced through distributors.
Browse the full DJ LED screen range →
FAQ
What pixel pitch is best for a DJ booth?
P2.5–P3.9 covers 90%+ of DJ booth scenarios. Choose P2.5 when your audience stands within 2 m of the screen; P3.9 when the viewing distance is 3–5 m. Finer pitch costs roughly twice as much per m² without visible benefit at longer distances.
Can a DJ LED screen be used outdoors?
Yes — specify IP65+ protection and 5,000+ nits brightness. GOB-sealed panels are strongly recommended for outdoor transport and weather exposure. Standard indoor panels (IP33, 1,000 nits) wash out in daylight and risk moisture damage.
How long does setup take?
Foldable and portable models: 20–30 minutes, one person. Curved or seamless 3-sided systems: 45–60 minutes, two people recommended. Tool-free modular designs with labeled components are fastest — experienced operators can deploy compact configurations in under 10 minutes.
Conclusion
Choosing a DJ LED screen comes down to four decisions: type (match to portability requirements), pixel pitch (match to audience distance), brightness and refresh rate (match to venue and streaming needs), and protection level (GOB for close-range or high-traffic environments). Use the cost tier table above as a planning baseline and add 5–10% for controllers, spare modules, and logistics.
For sourcing, contact TOP Dance for a free sizing consultation — domestic US stock with 3-day delivery, factory-direct pricing, and every DJ booth screen type in one catalog.
