How Do LED Dance Floors Work?

Jan 6, 2024 | Product Guides

LED dance floors have revolutionized the event industry, bringing a dynamic and visually stunning element to various events. Event planners and rental businesses, seek not only quality but also innovative solutions that are easy to install and manage. LED dance floors meet these needs perfectly, offering a range of applications from weddings to corporate events, adding an element of excitement and interactivity that is unmatched.

Types of LED Dance Floors

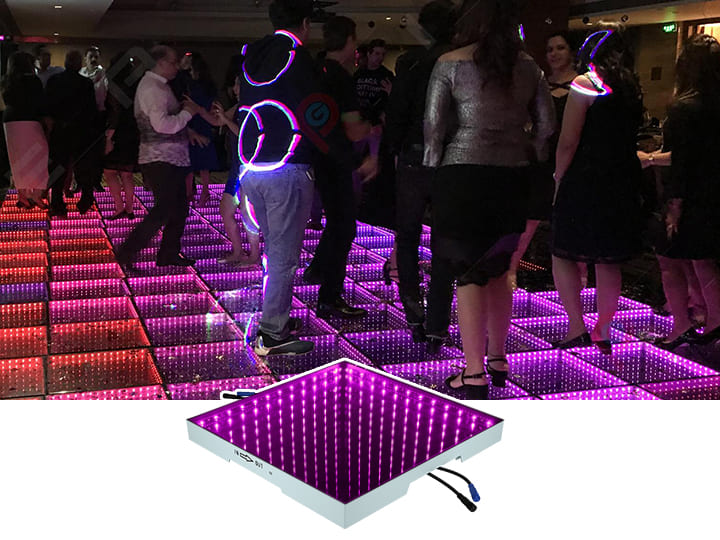

1. Wired LED Dance Floor

This type of LED dance floor is characterized by its cable connections, forming a mesmerizing LED light effect. It’s lit by connecting each dance floor tile to a power supply and controller, allowing for a variety of light shows suitable for different events. The modularity of these tiles means they can be configured in numerous sizes, making them versatile for any event space.
wired dance floor

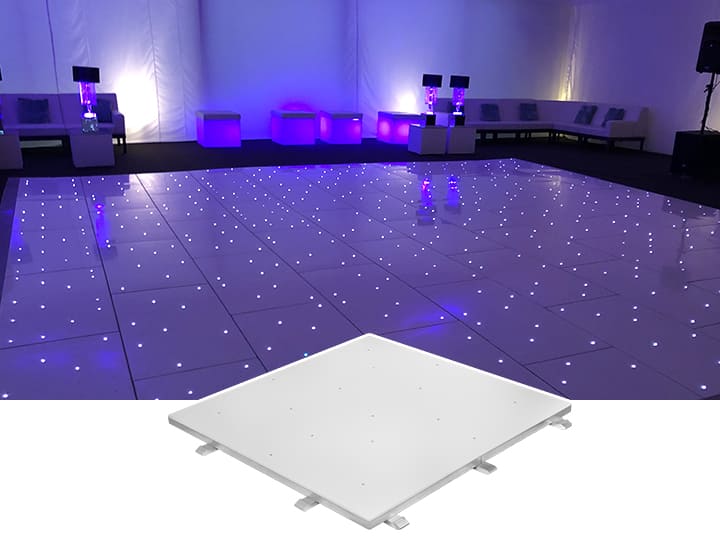

2. Ordinary Wireless LED Dance Floor

The traditional wireless LED dance floor eliminates the complexity of cabling. Tiles are connected through an interlocking system, making setup and breakdown quicker and more efficient. This type of floor still requires a power and controller connection but reduces the overall time spent on installation.
starlit dance floor

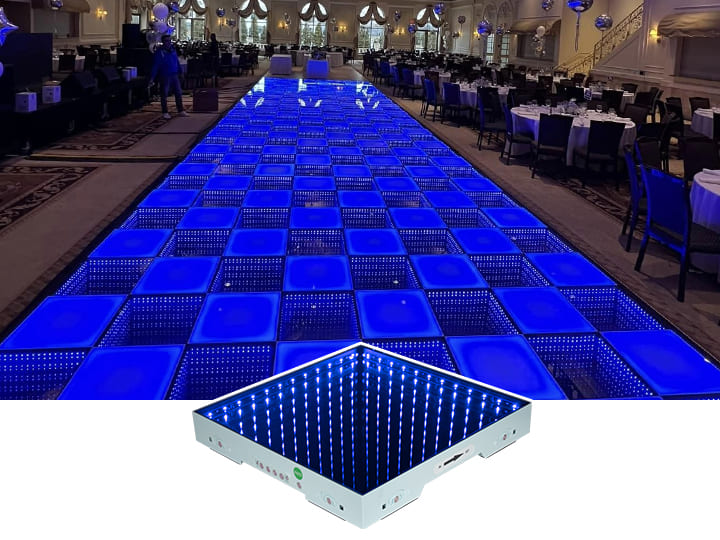

3. Magnet LED Dance Floor

A step up in terms of technology, the magnet LED dance floor simplifies the installation process even further. Magnets allow for a quick, stable connection, reducing setup time significantly. These floors are not only easy to install but also versatile, with LED lights capable of producing a variety of effects suitable for any event type.
3D LED dance floor

4. Battery Magnet LED Dance Floor

At the forefront of LED dance floor technology, the battery magnet LED dance floor by TOP DANCE epitomizes innovation and ease of use. With a built-in battery, these tiles light up instantly upon activation. The control of the lighting effects is simplified through a built-in controller, ensuring a seamless experience for both installers and users. This technology is exclusive to TOP DANCE, underscoring our commitment to leading the industry.
battery magnetic dance floor

How Do LED Dance Floors Work?

LED dance floors utilize embedded LED lights on their surface, controlled by a computer system for customized displays. These floors can be operated via various methods including DMX, computer, tablet and remote control. Constructed from solid-sided square cells, they are typically covered with toughened or acrylic glass or tempered glass. The sides and bottom of the cells are reflective, while the top diffuses light evenly.

Different LED dance floor types function through varied mechanisms:

Wired LED Dance Floor

LED dance floors with cables create an attractive LED lighting effect through cable connections. But how are they lit up?

These LED dance floors are connected to the power supply and controller through cables, facilitating the flow of electricity and signal transmission. The cables at the bottom of each dance floor tile in the first row are connected to a common main cable. This main cable connects to the power supply and controller, allowing the current to flow to each cable. Additionally, the connection to the controller enables remote controls and other devices to manage the effects of the dance floor tiles.

For different events, floor tiles of varying sizes are needed. The dance floor tiles are connected by cables, with the current and signal passing through these cables.

Wireless LED Dance Floor

This wireless LED dance floor, the most traditional and classic style, has been highly popular since its introduction. It avoids the complex linking between dance floors by using an interlocking system for the connection of dance floor tiles, eliminating the time-consuming wiring process.

The connection in this wireless LED dance floor is achieved through the metal tabs of each dance floor tile. The first row will have wired edges, and the wires with edges will be connected to the power supply and controller, allowing for the lighting up of LED lighting effects.

Magnet LED Dance Floor

The Magnet LED dance floor, unlike the cabled version, operates more simply and halves the time required for assembly compared to the wired dance floor. It needs to be connected to the power supply and controller to light up and facilitate effect control changes.

Firstly, unlike the cabled LED dance floor, the first row of the magnet LED dance floor will be connected to an wired edge with magnets, allowing for perfect connection with the magnets on the floor tiles. The other end of the cable connects to the controller and power supply, with the current and signal transmitted through it. The floor tiles are connected to each other via magnets, which can be securely connected with just a gentle push, thanks to the suction of the magnets and the sturdy and tight clips.

The magnet LED dance floor is now a mainstream product. Its LED lights can produce more trendy and advanced effects, creating eye-catching atmospheric effects. The changeable effects can adapt to various types of activities, making its use more diversified rather than singular.

Battery Magnet LED Dance Floor

This LED dance floor represents the most advanced technology in the LED dance floor sector, featuring the most optimized and simplest connection method and significantly reducing assembly time. It allows for the rapid illumination of LED dance floor tiles.

Thanks to its built-in battery, the dance floor tile lights up the moment you press the power switch, a unique and advanced feature of the Battery Magnet Dance Floor distinct from any other LED dance floor.

The connection of the battery magnet dance floor is very straightforward. The magnets on the dance floor tiles connect the front, back, left, and right tiles to form a complete piece of your desired size.

But how are the effects controlled? Let’s analyze this.

To control the effects, efforts are focused on the edges of the dance floor. The first row of edges contains a built-in controller that, once connected, operates similarly to an external controller for the magnet dance floor. This built-in controller still allows for the control of effects.

You might worry about the battery life. What happens if the battery runs out? Is charging this LED dance floor complicated?

Actually, the charging method for the battery magnet LED dance floor is quite simple. It can be charged in an flight case capable of charging, or connected to an edge with a wire, similar to the magnet LED dance floor, and directly connected to a power source for charging, making it very straightforward.

However, this technology is currently exclusive to TOP DANCE, having undergone countless tests to ensure stable connections and super easy use.

LED dance floors offer a range of options to suit the diverse needs of event planners and rental businesses. From wired to battery-powered models, each type provides unique benefits in terms of installation and visual appeal. At TOP DANCE, we pride ourselves on being at the forefront of LED dance floor technology, continually innovating to meet and exceed our clients’ expectations.
