How to Install Magnet LED Dance Floor Easily?

Dec 22, 2022 | Product Guides

It is an advanced and popular installation method in the LED dance floor industry. It is more convenient, easier and faster to install. It is equipped with an advanced magnet system, which can quickly and accurately install one floor tile in one second, and complete all the floor tiles installation in only eight minutes. It’s better for time and labor saving.

Installation Steps:

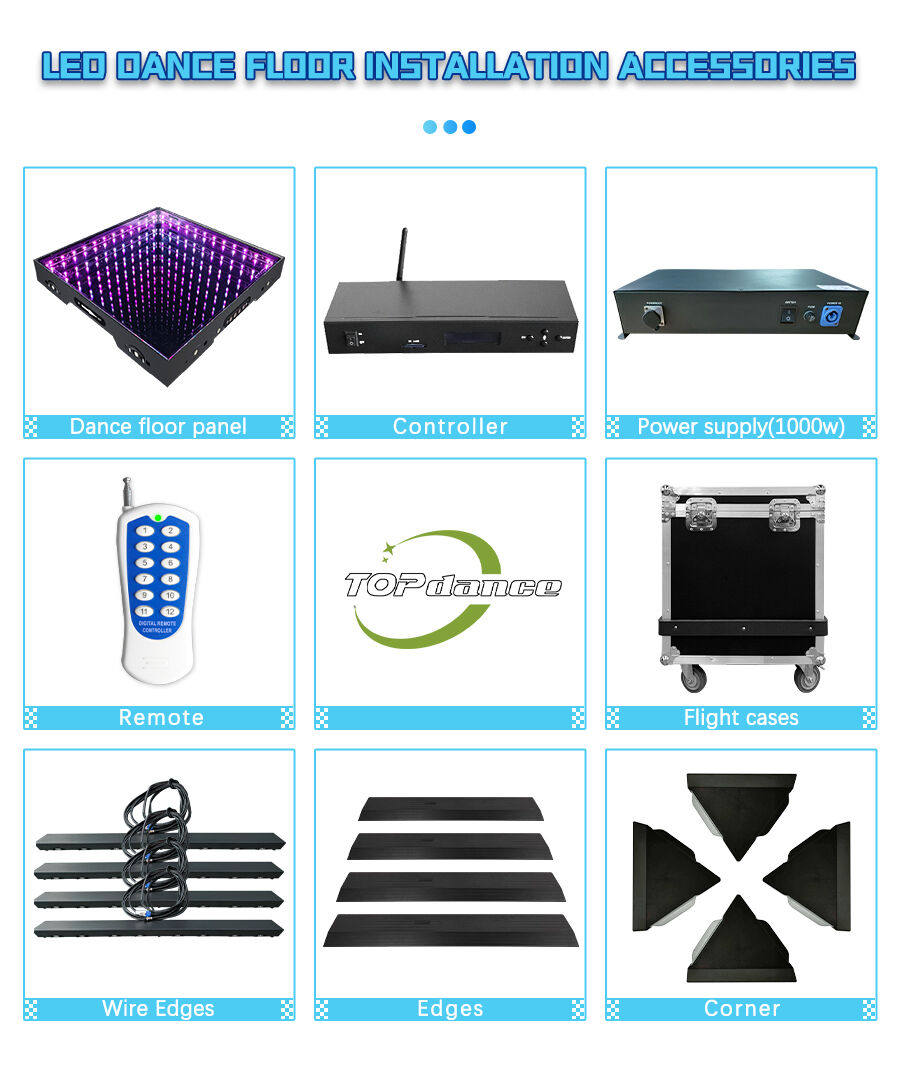

1.According to the drawing, take out the accessories you need.



spacer.gifTOP Dance Magnet Digital Dance Floor
Sizes Panels Controller Power supply
7x7ft 16 1 1
10x10ft 36PCS 1 1
12x12ft 49PCS 1 2
14x14ft 64PCS 1 2
14x16ft 80PCS 1 4
16x16ft 100PCS 2 5
16x20ft 120PCS 3 5
18x18ft 121PCS 3 6
20x20ft 144PCS 3 6
22x22ft 169PCS 4 7
24x24ft 196PCS 4 7
26x26ft 225PCS 4 8
28x28ft 256PCS 4 16
30x30ft 324PCS 3 18
32x32ft 400PCS 3 20





2. Place the wiring edge

3. To connect the controller’s cables and turn it on.

  • Connect the power of the controllers
  • Connect the wiring edge and the controllers (The connection of the controller port should be installed from port 1 to port 4 from left to right)

4. Connect the power supply cables and turn it on

5. Connect the wiring edge and the power supply

6. Install the first row of the floor tiles

The direction of the arrow is opposite to the position of the wiring edge. “IN” is above, “OUT” is below.

7. Press No.7 button on the remote control to light up all led, and check if the former installation works. Then continue the installation.

8.Install the edges of the other three sides after all floor tiles are installed

7. Press No.7 button on the remote control to light up all led, and check if the former installation works. Then continue the installation.
