What Is the Right LED Display Size for Your Venue?

Selecting the appropriate LED display size for your venue is far more than a simple aesthetic decision—it directly impacts visibility, audience engagement, and ultimately your return on investment. Many venue operators struggle with determining the correct LED screen size and end up overspending on ultra-fine pixel pitch displays that their audience can’t fully appreciate, or choosing LED wall sizes that don’t properly fit their spaces.

Understanding the science behind LED display size selection can save you thousands while delivering superior visual experiences.

Core Factors That Determine LED Display Size

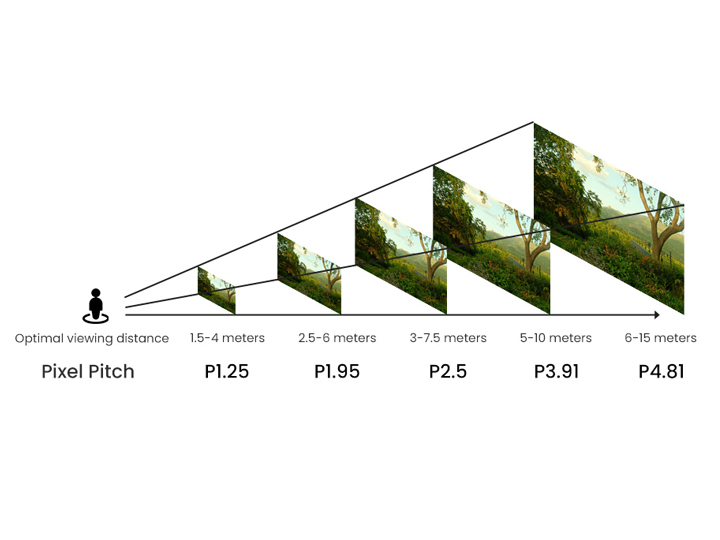

Viewing Distance – The Golden Rule of Clarity

The relationship between viewing distance and LED screen size forms the foundation of any successful display installation. Industry experts use several reliable formulas to calculate optimal sizing:

• Minimum viewing distance = pixel pitch (mm) × 1000
• Comfortable viewing distance (feet) = 8 × pixel pitch (mm)

For example, with a P2.5 display (2.5mm pixel pitch), viewers should stand at least 2.5 meters away for the image to appear seamless. At P6, that minimum distance extends to 6 meters.

Pixel Pitch & Resolution

Pixel pitch—the distance between LED clusters—fundamentally determines both image quality and cost. When selecting from various LED screen sizes available, remember:

• Smaller pitch (1-2.5mm): Higher resolution, sharper images, significantly higher cost
• Medium pitch (3-5mm): Balanced quality and affordability for mid-range viewing
• Larger pitch (6mm+): Cost-efficient for venues where viewers are distant

The screen size pixels calculation directly relates to pixel pitch—a 500×500 panel with P2.5 pitch contains 40,000 pixels, while the same physical panel with P5 pitch contains only 10,000 pixels.

Content Type & Purpose

What you’ll display significantly influences sizing decisions. The LED display size calculator formula should account for:

• Text-heavy presentations: Require finer pixel pitch to ensure legibility
• Video content: More forgiving with medium pixel pitch ranges
• Brand graphics: May demand specific dimensions to maintain aspect ratios

A 2024 study from The Event Manager Blog found that presentations with detailed spreadsheets or small text required displays with at least 2× the diagonal measurement that video-only content needed for the same viewing distance.

Consider aspect ratio carefully when evaluating standard LED screen sizes. While 16:9 aligns with most modern video content, traditional 4:3 often works better for PowerPoint presentations or static images.

Venue Space & Layout Constraints

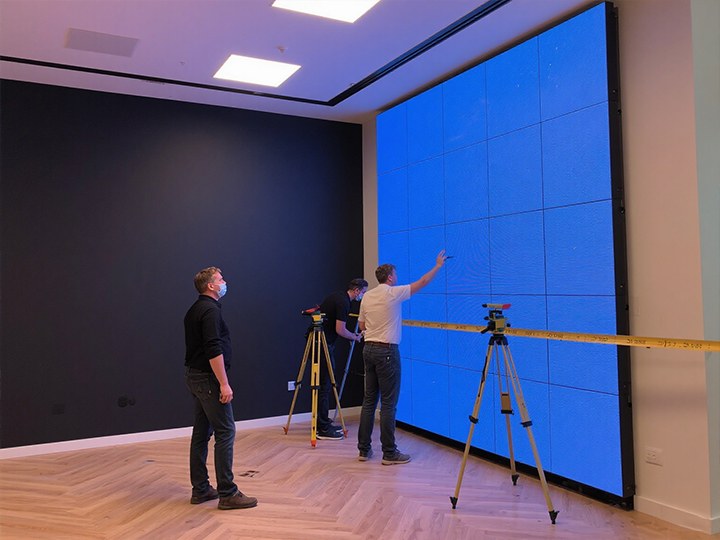

Physical space represents a non-negotiable constraint on LED wall screen size selection. Before consulting any LED screen size chart, conduct a thorough site survey addressing:

• Wall dimensions and structural integrity
• Ceiling height limitations
• Potential obstructions (columns, fixtures, etc.)
• Mandatory buffer space (2-3 feet) for installation and maintenance

Budget & Total Cost of Ownership (TCO)

When evaluating LED panel size options, look beyond the initial purchase price to understand true costs:

• Hardware: The display itself plus processors
• Installation: Mounting hardware, labor
• Support structures: Particularly for large installations
• Operational costs: Energy consumption and maintenance

Multiple smaller screens often provide better coverage and redundancy than a single massive wall, particularly for venues with challenging sightlines or architectural limitations.

Recommended LED Display Sizes by Venue Type

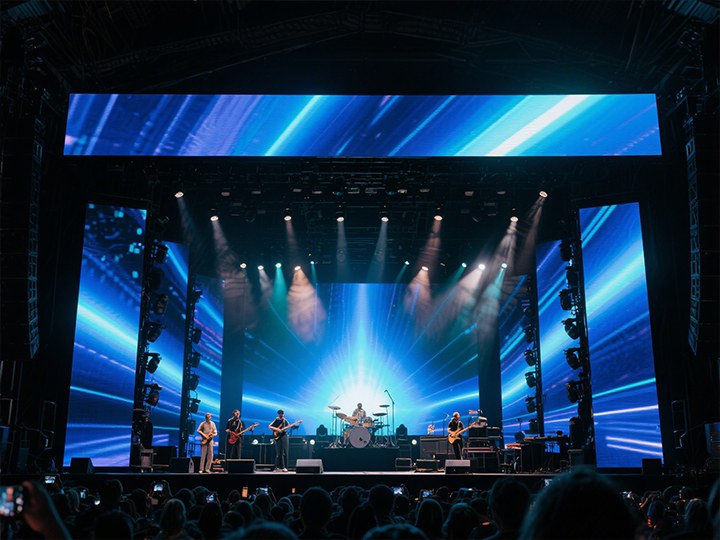

Concerts & Live Events

For music venues and performance spaces, stage LED screen size varies dramatically based on capacity:

• Small venues (200-300 guests): Typically 10’×6′ or 7’×12′ with pixel pitch of 2.9-4.8mm
• Medium venues (300-800 guests): 15’×9′ or multiple 8’×6′ screens, pixel pitch 3.9-5.9mm
• Large festivals (800-2000+ guests): 24’×14′ or 20’×40′, pixel pitch 4.8-8mm

The stage background LED display often covers 70-80% of the stage width in theatrical productions. For touring productions, modular designs with quick assembly features save valuable setup time.

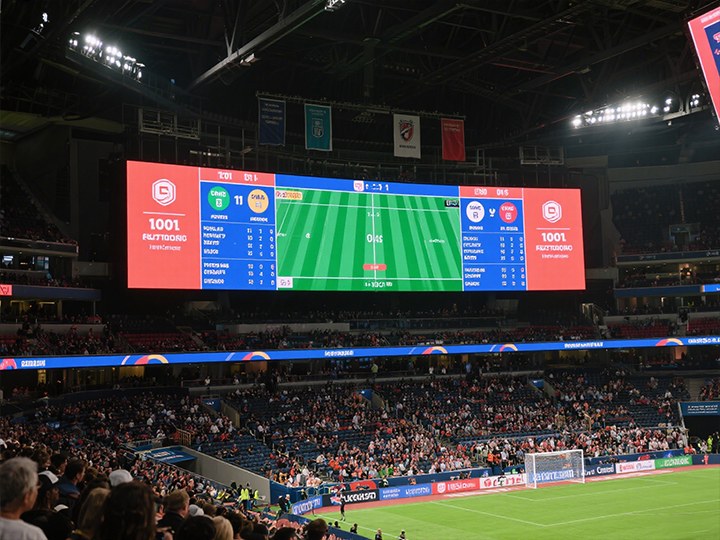

Sports Arenas & Stadiums

Sport LED screen installations have specific requirements based on function:

• Main video boards: 15’×9′ to 24’×14′, pixel pitch 6-10mm
• Center-hung displays: Typically 20’×12′ per side, pixel pitch 4-8mm
• Scoreboards: 30’×18′ to 60’×35′, pixel pitch 8-16mm
• Ribbon/perimeter boards: 3′ high with variable length, pitch 6-10mm

According to Stadium Tech Report’s 2023 survey, effective scoreboard visibility requires the board height (in feet) to equal approximately 1% of the maximum viewing distance (in feet). For a venue with 500-foot sightlines, a 5-foot tall scoreboard minimum is recommended.

Outdoor LED display screens for sports venues typically require brightness levels of 5,000-8,000 nits to combat sunlight, while indoor displays operate effectively at 800-1,200 nits under controlled lighting.

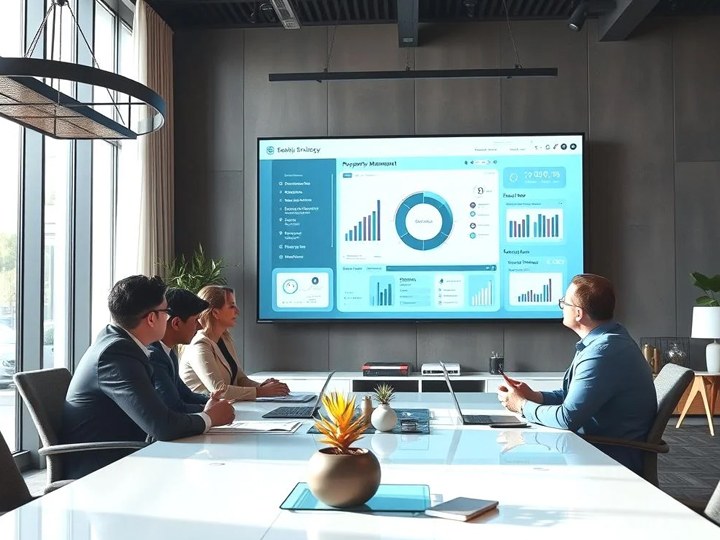

Corporate Events & Conferences

Business environments demand displays that balance professionalism with clarity:

• 50-100 people: 8’×4.5′ screen, pixel pitch 1.5-2.5mm
• 100-200 people: 10’×5.6′ display, pixel pitch 2.5-3mm
• 200-500 people: 15’×8.5′ screen or dual 12’×6.8′, pixel pitch 2.9-3.9mm

The Meeting Professionals International (MPI) recommends mounting the bottom edge of displays at seated eye level (approximately 45-48″ from the floor) to reduce neck strain during presentations.

For board rooms specifically, “Display Image Size for 2D Content” standard suggests the display width should be approximately 50% of the room’s depth for optimal viewing.

Trade Shows & Exhibitions

Exhibition booths benefit enormously from right-sized displays:

• 10’×10′ booth: 6’×4′ screen, pixel pitch 1.9-2.9mm
• 20’×20′ booth: 8’×6′ display, pixel pitch 2.5-3.9mm
• 30’×30’+ booth: Multiple 8’×6′ screens or one 12’×8′, pixel pitch 2.9-4.8mm

The Center for Exhibition Industry Research reports that digital displays increase booth traffic by up to 48% compared to traditional static signage. Furthermore, 68% of shoppers say in-store digital messages influence their purchasing decisions.

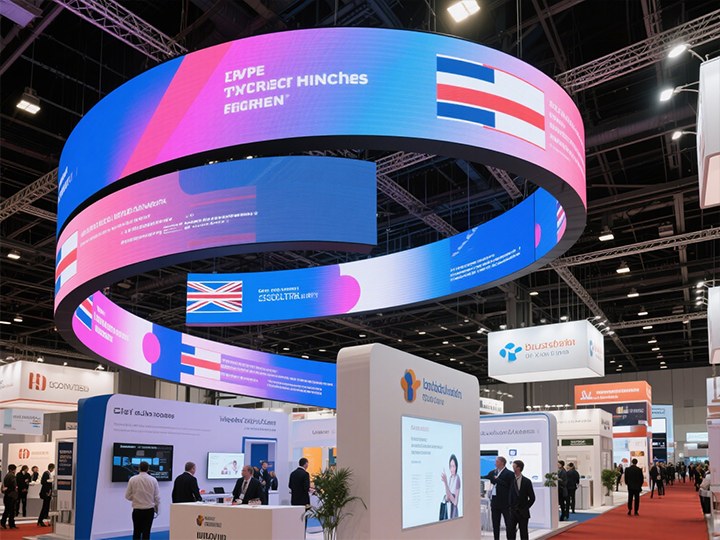

Modern trade show LED panel sizes often incorporate curved configurations or custom shapes to create more immersive experiences that draw attendees from across the convention floor.

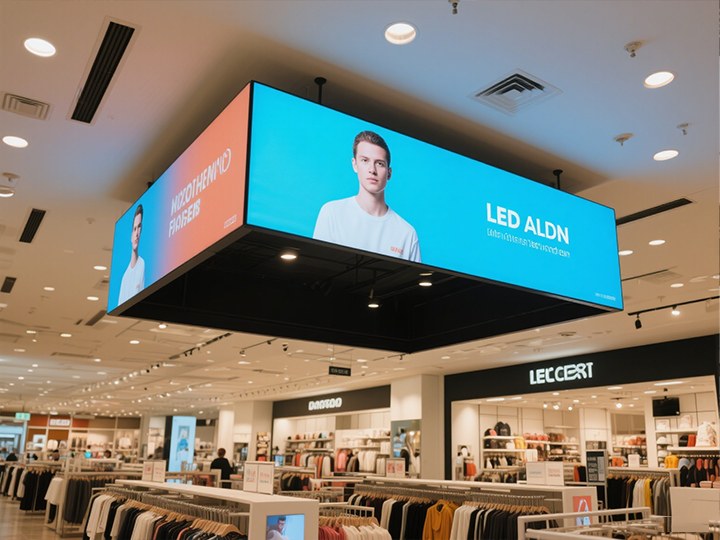

Retail Environments

In-store LED advertising screens typically range from:

• Small displays: 1×1m to 3×3m indoor, P2.5-P4
• Feature walls: Custom configurations based on architecture
• Window displays: Higher brightness (3,000+ nits) to overcome ambient light

Retail environments increasingly utilize non-standard shapes and curved installations that integrate with store design rather than just rectangular screens.

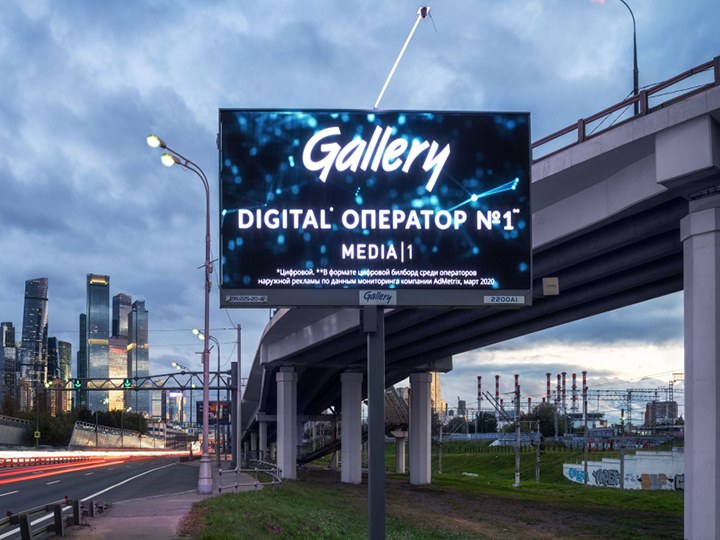

Outdoor Billboards & Digital Signage

Outdoor LED advertising screen dimensions follow established formats:

• Small (urban areas): 6’×12′, viewing range 25-100 feet
• Medium (suburban): 10’×20′ to 10’×36′, viewing range 100-500 feet
• Large (highways): 14’×48′, viewing range 500-1,000 feet

Content guidelines for these displays recommend headlines be 24-30 inches tall for highway billboards, with messages limited to 7-10 words maximum for safe readability by passing motorists.

The Outdoor Advertising Association recommends pixel pitches between 8-16mm for standard roadside billboards, as finer pitches provide no additional benefit at typical viewing distances while substantially increasing costs.

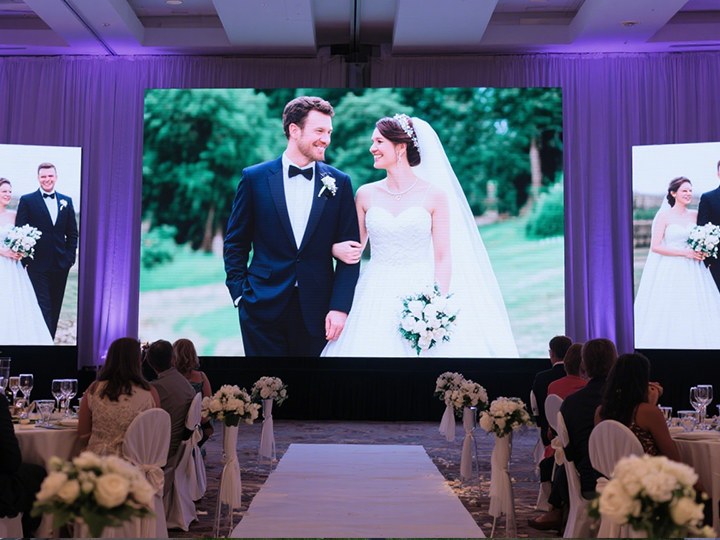

Weddings & Social Gatherings

Personal celebrations benefit from appropriately-scaled displays:

• 50-100 guests: 6’×3.5′ screen, pixel pitch 2.5-3.9mm
• 100-200 guests: 8’×4.5′ screen, pixel pitch 2.9-4.8mm
• 200+ guests: Multiple 8’×4.5′ screens for broader coverage

The Knot Worldwide’s 2023 wedding technology survey indicated that 72% of couples now incorporate some form of digital display in their reception, with photo slideshows and live social media feeds being most popular.

Technical & Installation Considerations

Structural Support & Load-Bearing

The physical weight of LED displays demands careful structural planning:

• LED cabinet materials matter: Aluminum cabinets weigh significantly less than iron
• Wall-mounted displays require structural assessment prior to installation
• Ceiling-mounted installations need professional engineering review
• ADA compliance requires hallway protrusions be limited to 4″ unless above 80″ from floor

Professional load capacity analysis should be standard practice before any large installation.

Power & Cooling Requirements

Power planning is essential for reliable operation:

• Typical calculation: Number of panels × power per panel = total power required

• Example: 10 panels × 250W = 2500W (20.8A at 120V)
  • Displays over 20m² often require active cooling systems
  • Outdoor installations may need dedicated air conditioning units
  • Temperature tolerance typically ranges from -10°C to 40°C for optimal performance

Cable Management & Connectivity

Modern installations benefit from simplified connectivity:

• Newer systems feature internal power and data connections
• Data cable requirements depend on resolution and content complexity
• Wireless control options can simplify booth and temporary installations
• Cable routing and placement should be planned during initial site survey

Compliance & Standards

Professional installations must adhere to established guidelines:

• Display Screen Equipment (DSE) regulations for workplaces
• Local building and electrical codes
• Manufacturer’s installation specifications

TOP Dance: LED Display Expertise

With over a decade of LED display manufacturing experience, TOP Dance has established itself as a leading provider of tailored LED solutions across diverse venues. Our 3,200 square meter factory houses 20 production lines capable of producing 1,000 display daily, all subject to rigorous 72-hour testing protocols before shipping.

Our approach emphasizes practical solutions over technical specifications alone. Through our Los Angeles warehouse, we’ve helped numerous West Coast clients implement modular rental displays that can be reconfigured for different events rather than investing in permanent installations that might not serve all their needs.

Common Mistakes to Avoid

When selecting your LED display size, watch for these frequent pitfalls:

• Choosing ultra-fine pitch for distant viewing: For stadiums or large venues, P6-P10 often provides equivalent perceived quality at substantially lower cost than P2.5-P3.9 displays.
• Ignoring ceiling height and structural load limits: Physical constraints trump theoretical ideals every time. Always verify load-bearing capacity before purchase.
• Forgetting maintenance clearance: Without sufficient access space (minimum 2-3 feet), repairs become extremely difficult and costly.
• Miscalculating total power requirements: Inadequate power planning leads to system failures, reduced brightness, and shortened lifespan.
• Selecting based on price alone: The cheapest display often becomes the most expensive when factoring in repairs, replacements, and operational limitations.

How to Choose the Right LED Display Size – A Step-by-Step Guide

1. Measure your venue dimensions and seating layout
   Document maximum viewing distances, closest viewer position, and any physical constraints.
2. Define your content needs
   Determine if you’ll display text-heavy presentations, video content, or mixed media.
3. Calculate appropriate pixel pitch
   Use viewing distance formulas to identify suitable pixel pitch ranges.
4. Determine optimal physical dimensions
   Consider aspect ratio requirements and venue constraints.
5. Evaluate total cost of ownership
   Look beyond purchase price to installation, operation, and maintenance.
6. Consult with display experts
   Professional guidance ensures all technical requirements are properly addressed.
7. Request visualization or demonstration
   When possible, see examples at similar viewing distances before purchasing.

Conclusion: Strategic LED Display Size Selection

The “right” LED display size isn’t determined by a single measurement or specification but through a comprehensive analysis of interrelated factors. By prioritizing viewing distance, content needs, and venue constraints above abstract technical specifications, you’ll avoid the common and costly mistake of overspending on features your audience cannot appreciate.

For personalized guidance on selecting the perfect LED display size for your specific venue and needs, contact TOP Dance for a tailored consultation. Our Los Angeles warehouse ensures quick delivery and expert support throughout the United States, helping you create impactful visual experiences without unnecessary expense.
