Transparent LED Film
- High Light Transmittance
- Easy and Fast Installation
- Ultra-Wide Viewing Angles
- Bendable and Trimmable

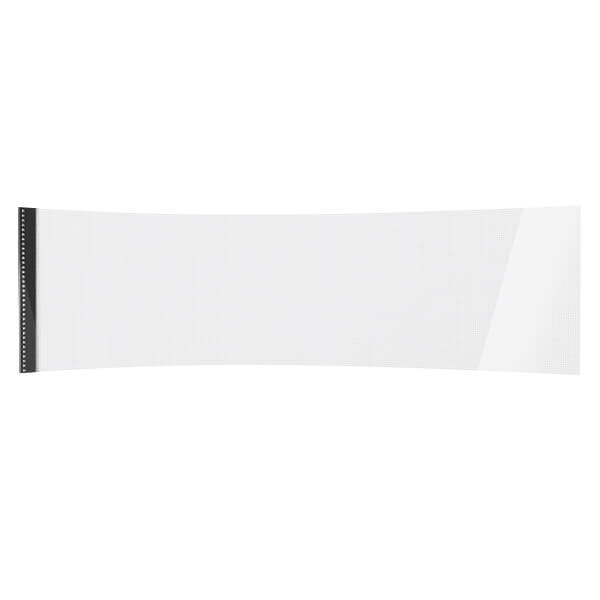

What Is Transparent LED Film?
Transparent LED Film, also known as flexible transparent LED screen, is an innovative screen capable of transparent display, featuring a simplified structure that achieves high-definition visuals with a high refresh rate. Its film-based installation method allows the entire screen to be highly flexible, allowing for bending and deformation, providing more creative usage options.
Specification
| Item | Parameter | ||
|---|---|---|---|
| Model Number | P4-8 | P6 | P8 |
| Module size | 240mm*1200mm | ||
| Pixel pitch | 4mm 8 | 6mm | 8mm |
| Pixels Density | 31250dots/m2 | 27777dots/m2 | 15625dots/m2 |
| Minimum comfortable viewing distance | 6m | 8m | |
| Pixel configuration | 1R1G1B | ||
| Package mode | SMD1313 | ||
| Pixel resolution | 30dots(W)*150dots(H) | 40dots(W)*200dots(H) | 30dots(W)*150dots(H) |
| Box size | 480*1200mm | ||
| Brightness | >5000cd/m2 | ||
| Module Max Power | 200W | 160W | |
| Max Power | 800W/m2 | 700W/m2 | |
| Average Power | 240W/m2 | 210W/m2 | |
| Refresh frequency | ≥7680Hz | ||
| Viewing Angle | 140°(W),120°(H) | ||
| Module thickness | 1.5 mm | ||
| Weight | 0.5kg | 0.5kg | 1 kg |
| Permeability | 75% | ||
| Scan mode | 1can | ||
| Matching system card | Colorlight、Novastar | ||
| MTBF | >9000hours | ||
| Storage temperature | -20℃～+80℃ | ||
| Working temperature | -20℃～+50℃ | ||
| Relative humidity | 10%-75%RH | ||
Advantages of Transparent LED Film
Lighter and Thinner Design
This lightweight led screen boasts a thickness of only 3mm and a weight as light as 0.2kg/m2, significantly reducing the weight compared to conventional transparent screens, which typically weigh around 12kg/m2. This flexible transparent led screen makes the installation process more convenient, reducing the labor and time costs associated with installation.
Safe for Using
Enhanced structure facilitates natural convection, achieving improved heat dissipation for reduced failure rates, ensuring an extended lifespan, and lowering maintenance costs. With no components on the screen, which improved power concealment design, special material selection, achieving a safer and more reliable usage choice.
Superior Longevity
Providing various pixel pitch choices for achieving your desired and ideal visual performance, presenting better clarity, more vibrant colors, and improved overall effectiveness.
Multiple Pixel Options Available
Providing various pixel pitch choices for achieving your desired and ideal visual performance, presenting better clarity, more vibrant colors, and improved overall effectiveness.

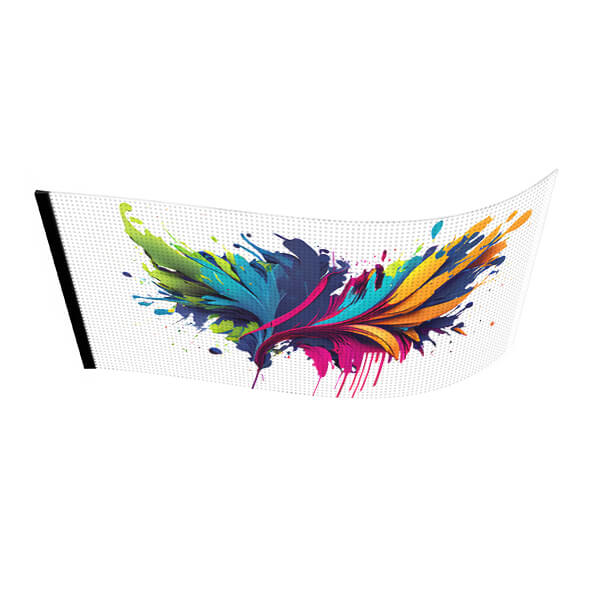

Customizable Rollable LED Display Film
This roll up led screen is highly flexible and can be bent to meet various location requirements. It is incredibly versatile, allowing for better adaptation to unique space constraints, resulting in improved display performance.
Bendable and Trimmable
This Flexible Transparent LED Display are easy to fold or roll up flexibly, or even cut to the desired structure or length, without affecting the lighting effect.
Low Power Consumption
Low power consumption, compared with other suppliers of products, electricity consumption savings of 80%.
Innovative and Superior Visual Presentation
Great Brightness
Higher brightness levels, up to a maximum of 5000cd/m2, ensure clear visibility and vibrant color saturation of the transparent led video wall in both daytime and nighttime, creating more vivid and dynamic visual displays.
Better Transmittance
As a led transparent screen, this screen has an improved transmittance in a highly technological visual presentation, creating a more novel and innovative visual appeal. Easily achieve up to 95% transparency without affecting natural light penetration or the quality of visual presentation
High Refresh Rate
With a refresh rate of higher than 3840Hz, the led transparent display achieves smoother transitions between images, creating a more comfortable viewing experience and producing eye-catching imaging effects that capture viewers’ attention instantly, regardless of the usage scenario.
Super Wide Viewing Angles
This transparent LED film display offers an incredibly wide viewing angle, with a horizontal viewing angle of up to 160° and a vertical viewing angle of 140°. It achieves the best viewing experience within a range of 8 to 150 meters, delivering superior visual effects. Viewers from various positions can clearly see the content, resulting in a better visual experience.
Simple and Hassle-free Installation
It is an adhesive led screen. The mounting on glass installation method which is even simpler, suitable for a wider range of scenarios, convenient to use, and effortless. An even simpler installation method, no need for support structures like brackets or steel frames. Just peel off the surface film, gently apply it, and connect the new power box, that’s all you need. It can also be attached directly to the building wall without destroying the original mechanism of the building.
Super Convenient Maintenance
Front and back maintenance are both available, making it unbelievable easy to maintain. You can easily maintain with less cost and time spending.
Application Field of Transparent LED Film
This Flexible Transparent LED Screen is a popular product for various types of large glass curtain walls, such as glass walls of buildings, urban skyscrapers, large shopping malls and exhibitions, glass windows of automobile stores, jewelry and clothing stores, high-speed rail stations. , airports, subway stations, bus stations, and other transportation hubs. It can also be used for lighting projects, interior decoration, glass parapets or creative displays for cultural and tourism activities and stage performances.
Explore More with TOP DANCE
As you marvel at the sleekness of our Transparent LED Film, remember that this is just the beginning. TOP DANCE offers an extensive range of LED Display solutions, each crafted with the same attention to quality and innovation.
Curious to learn more? Let’s navigate the vibrant world of TOP DANCE LED displays.
Explore Another Transparent Marvel: The Transparent LED Screen
If you love the flexibility and transparency of our Flexible Transparent LED Screen, you might be excited to explore another unique solution from our lineup: the Transparent LED Screen.
• Exceptional Visual Quality:
High refresh rate of 3840Hz, brightness up to 4000 nits, wide 140° viewing angles, and multiple pixel pitch options (P3.91-P7.81) ensure stunning clarity and vibrant visuals.
High refresh rate of 3840Hz, brightness up to 4000 nits, wide 140° viewing angles, and multiple pixel pitch options (P3.91-P7.81) ensure stunning clarity and vibrant visuals.
• Effortless Installation:
Lightweight design (6KG per panel) with easy-to-use top and side handles for quick setup.
• High Transparency:
62% transparency allows the screen to blend seamlessly into any environment.
• Waterproof Design:
Suitable for outdoor and indoor use, built to withstand all conditions.
• Versatile Applications:
Perfect for stages, commercial plazas, storefronts, transportation hubs, and more.
FAQs
1. Are these transparent LED film energy-efficient?
Yes, this transparent led screen is more energy-efficient, saving up to 80% more energy compared to traditional LED displays.
2. Do transparent LED film come in different colors and pixel pitches?
Yes, this flexible transparent screen offers a variety of pixel options to better adapt to the requirements of different locations, using high-quality light sources to ensure better color rendering.
3. Are transparent LED film suitable for indoor applications？
Yes, this type of led display screen can be used for indoor display applications in apartments.
4. What’s the warranty of this transparent LED film?
We offer a 3-year warranty period and provide 24/7 after-sales service, giving you the most professional technical support.
