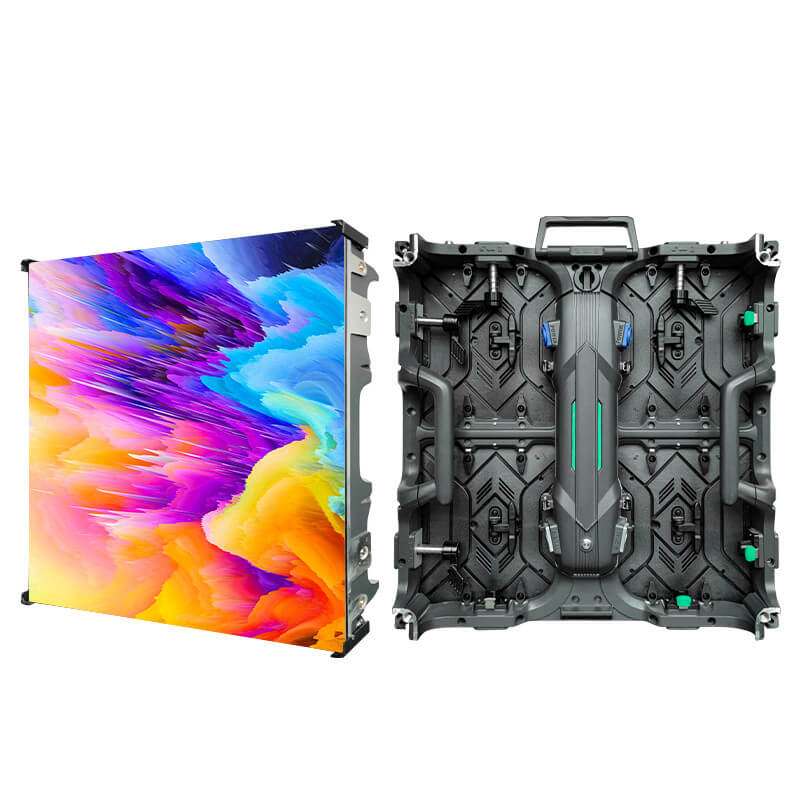

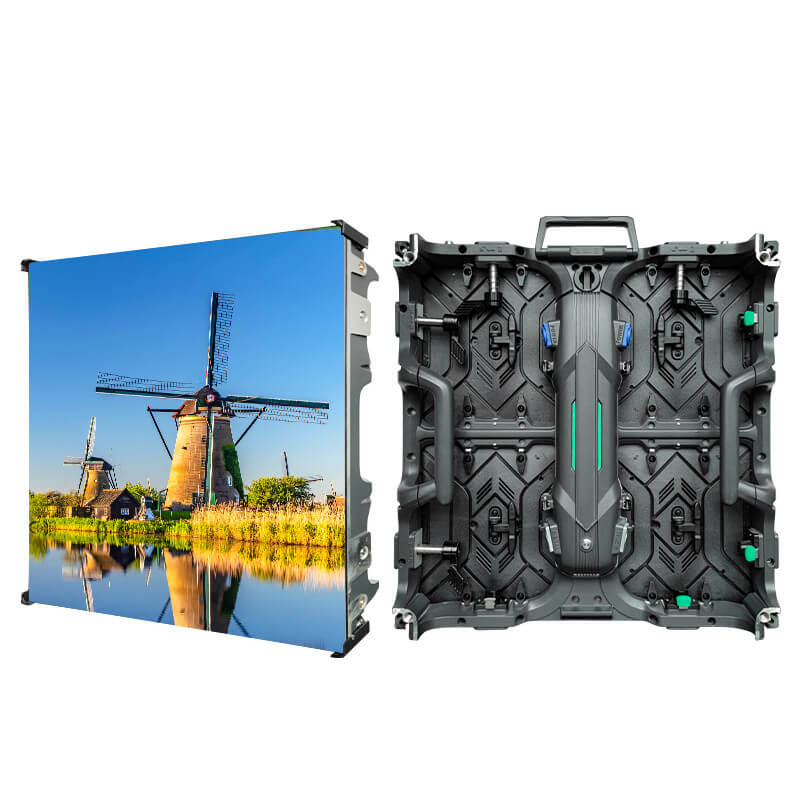

Front Maintenance Led Screen

  • Great Display Effect
  • Lighter and Thinner
  • High Definition
  • User-friendly Rapid Maintenance
  • Special Collision Protection Design
How can we integrate the latest technology into advanced LED panels and turn them into an excellent viewing experience? We have done it. The Front Maintenance LED screen is ready for the perfect display effect. It can create a dramatic and amazing stage at any time to let the audience enjoy and cheer for the live activities.

Product Advantages

  • Simple and Fast Installation:

The LED screen apply the magnetic attraction fast lock technology, which make it available for a fast, accurate and simple assemble and disassemble and saving more time and labor costs.

  • Multiple Installation Methods:

It supports various installation methods, including wall installation, cabinet installation, bracket installation and truss hanging set-up, which is suitable for rental business to move the led screen to different events venues like the shopping mall, exhibition hall, airport, subway and so on.

  • User-friendly Rapid Maintenance:

It adopts a modular design to realize full front maintenance. In case of equipment failure, it is not necessary to disassemble the panel in a large area. The panel with failure can be directly disassembled. The maintenance work is convenient and fast, which is conducive to long-term maintenance and long-term use.

  • Clear Visual Effect:

The LED screen adopts high-quality Led source, which present a better display effect longer service life. It is capable of producing more realistic and colorful images.

  • Special Collision Protection Design:

The anti-collision design protects the panel from collision during handling and installation.

  • Excellent Stability:

Large power capacity, to ensure more stable connection. The LED panel power box of this series is independent and movable. It is convenient to assemble and maintain the power supply and receiving card.

Fast and Simple Installation:

  • Quick and convenient installation:

Magnetic connection system is adopted, which make it possible to achieve the result of one-second installation. The excellent performance of the panel and advanced magnetic system allow for quick and easy installation and disassemble.

  • Save time and labor costs:

This magnetic connection system greatly saves time and labor costs. It avoid the trouble of the complicated wire setting. Therefore, it’s no need to hire a bunch of people for the set up.

  • Corner protector design:

It can avoid the lamp damaging during transportation & installation

  • Operation manual:

Accurate operation manual and video are provided, to help customers successfully complete installation tasks.

Specification

Model No. TP-P3.91(Indoor) TP-P3.91(Outdoor)
Pixel Pitch 3.91mm 3.91mm
Led Source SMD2020 SMD1921
Physical Density 65536pixel/㎡ 65536pixel/㎡
Brightness 800-1200nits 2500-3500nits
Panel Resolution 128*256pixel 128*256pixel
Cabinet  Weight 12.8kg/28.2Ib
Cabinet Size 500mm×1000mm 500mm×1000mm
19.7″×39.4″ 19.7″×39.4″
Cabinet Material Die-casting aluminium Die-casting aluminium
Max Power Consumption ≦800w/㎡
Ave Power Consumption ≦400w/㎡
Power Supply Spec 5A/40A 5A/40A
Refresh Rate 1920HZ/3840HZ
Gray Scale 14-16bit
IP Rating IP30 IP65
Max Stacking/Hanging 10m/10m
Lifetime 50,000 hrs
Viewing Angle H:160º  V:140º

Product Description

Visual Effect:

Vivid visual effect:

It is of high refresh rate which can show clear display effect without scanning line. The high quality of pixel pitch LEDs guarantee the amazing brightness and deliver a high-definition and very vivid and realistic viewing experience.

Multiple presenting mode:

Four kinds of picture presenting are available, including full screen display, single screen display, image roaming, anisotropic splicing, which can present a dynamic and infectious visual effects.

HD resolution:

The high resolution of it presents better image quality on the screen, allowing you to enjoy an immersive and lifelike viewing experience. Enables you to enjoy better quality images.

Maintenance:

The Magnetic attraction design is adopted, which make it much easier and more convenient for maintenance. The host and display screen are installed separately, which is more convenient and stable. What’s more, the modular design is for easy disassembly and support front maintenance. Module and power box can be maintained separately without interference

Advantage:

Its advantage is to save space, especially for those very small rooms. This maintenance method is very convenient for disassembly and assembly. When a single point error occurs, one person can quickly fix it.

Material:

High-quality LED:

It adopt high-quality LED with the working life hours that can last for 50000 hours. High-quality LCB provide a more stable and reliable Led screen display. And make it an wise choice for long-term use.

Light weight design:

Thickness less than 80mm, 12 kg (500*1000) / 8kg (500*500) per set, light as cicada’s wing

Installation Mode:

Various installation methods:

Wall installation, cabinet installation, bracket installation and truss hanging set-up are available, which is suitable for rental business and different kinds of events venues like the shopping mall, exhibition hall, airport, subway and so on.

Mixed splicing with universal modules:

500*1000mm and 500*500 cabinets use universal modules to save costs. They can be mixed and spliced up and down to achieve more creativity.

Control Method:

Computer control is available, which is convenient and quick switching effect or video display.

Packing

Carton:

A traditional method for LED dance screen packing, which is suitable for permanent installation.

Flight case:

We use flight case as the product packing. A better method for LED screen packing. It’s easy for staff of the event to move and protect the whole set of product.

Details:

  • 6pcs cabinets Led screen packed in flight case. / 6pcs cabinets Led screen packed in carton.
  • Controller, insatllation cables are included.
  • Spare parts included.
  • Cable: We offers a range of durable and professional cables to connect your LED panels safely and trouble free. These professional cables offer easy, durable and safe connection.
Advantages of flight case packing:
  • The appearance of the flight case is more beautiful and the weight is lighter.
  • The design of the flight case is professional, so the products in the case will not be damaged during transportation.
  • The excellent material of the flight case has the characteristics of waterproof, shock proof and moisture-proof.
  • The flight case is strong sealing and oxidation resistance.
  • The flight case is solid, relatively anti-collision, and has good resistance to external forces.
  • The service life of the flight case is longer, generally 2~3 times that of the ordinary box.
  • The bottom of the flight case has strong bearing capacity and can bear heavy weight.

10 years of Factory Production Experience

We have our own production plant, which covers an area of 3200 square meters, including a complete workshop, testing area, warehouse and exhibition room.

It has more than 20 production lines for LED screens manufacturing and more than 50 professional workers work for LED screens every day.

The factory have 10 year experience in LED screen and LED dance floor products manufacturing, which has provided more than 100000 LED screens and LED dance floors for the event industry. The production technology is advanced and the production level is efficient.

Professional Testing Area

The professional testing area is more than 1000 square meters , which can test 1500pcs panels at one time, provide 3 times re- install testing for each panel, provide more than 72 hours testing for each panel and show different programs on floor for customers to choose.

The product will pass three strict installation tests, including lamp beads, connection stability and whether the effect is normal.

Application Fields

We have cooperated with well-known enterprises such as Google, Twitter and lots of big MV companies. It can also be use for the rental business, shopping mall, exhibition, advertising wall of airport or subway, different kinds of show, LED walls and perimeter displays in stadium, broadcasting studio, museum, hotel, outdoor digital billboard, rooftop screen and so on.

Service

Contact us:

If you are interested in our products, please feel free to contact us. 24-hour online communication service is available. The sales department is always ready to answer any questions for you. Press “Contact us” to get further information. Or you can leave the detail messages by pressing “Get a quote”. Our specialist will contact you as soon as possible.

Performance in the global market:

We have rich industry experience and constantly provide high-quality products and services to numerous countries and regions. Our products have an excellent performance in overseas market,including the USA, Chile, Canada, Europe, the UK, South Africa and so on. Especially in the United States, our products occupies more than half of the U.S. market.

Warehouse in the USA:

The company has warehouses in Los Angeles and Las Vegas in the US, which is convenient for transportation, enabling customers to obtain products more quickly after placing orders. Customers can visit the warehouse and check the samples on site. It’s no need for paperwork, sea freight and taxes.

After-sales service:

If you have any questions, you can contact our after-sales team at any time. Our professional team will reply to your question in time and provide you with a satisfactory solutions.

Warranty:

We provide 3-year warranty for all products. Effectively protect the rights of customers and present a better after-sales service.

Qualification certificate:

It is in compliance with CE, ROHS. It is certified that the LED screen display is safe to use and thereby it can be sold to overseas.
