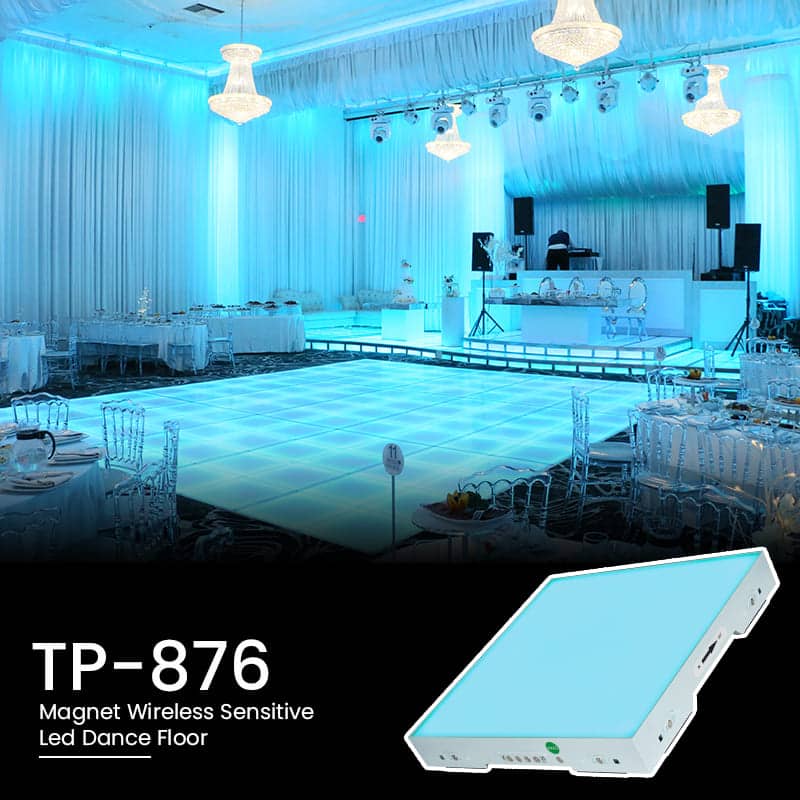

TP-876 Magnet Wireless Sensitive Led Dance Floor

  • Fast installation
  • Magnetic System
  • Various Cool Effects
  • Multiple Control Methods
  • Great Load Capacity
Do you want to experience a special dancing party with colorful Led dance floor? TheTP-876 magnet wireless sensitive Led dance floor can satisfy you with all your need. It can create a dramatic and amazing stage for the parties or events.

Product Advantages

  • Quick and Easy Installation:

It adopted with magnetic system, which make it possible for one piece installation in only one second. All the installation can be completed in only 8 minutes!

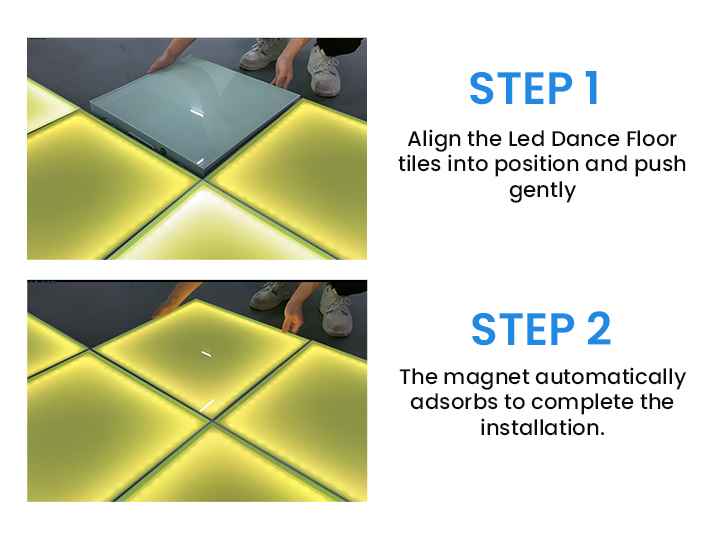

Install Interactive Dance Floor

  • Multiple Control Methods:

It supports remote control, DMX control and computer control. You can freely switch alternative colors, styles and other effects by using the attached remote control.

  • Multiple Effects:

It can present pattern effects, solid colors, starlit effects and interactive effects and bring your party to life with cool light shows right beneath your feet.

  • Interactive Induction:

This Led floor has a gravity sensing function, and the effect can be switched with people walking or dancing on it.

  • Thin and Light Design:

Only with 8.5 kg per panel, and 70mm thickness, more convenient to be installed and shipped.

  • Power Saving:

The panel power is 20 watts, which is more power-saving.

  • Excellent Stability:

Even if it is used for a long time, it can also ensure stable performance, long service life, stable signal and power supply, and safe use.

  • Great Load-bearing Performance:

With the high-quality tempered glass, the bearing capacity of each panel is more than 500-600 kg. Because of its good load-bearing capacity, it can accommodate many people to dance at one time.


Production Name Magnet Interactive Dance Floor
Model TP-M876
Panel size 50cmx50cmx7cm
Panel weight 8.5kg
Surface Material 10mm Tempered glass
Buttom Material Plastic Case, ABS
Waterproof index:  IP53
Light source:  SMD5050, RGB ,64pcs
Panel Power 20W
Panel Voltage 24V
Panel Electric Current 0.83A
Working life hours 50000hrs
Working Temperature -50℃- 60℃
Connection Way Magnetic Connection
Functions Solid colors, Pattern Effects,Starlit Effect,Interactive
Control Way Remote,Computer, DMX,Controller

Product Description

Durable Material:

High-quality Led source:

It adopts the high-quality SMD5050 as the light source, which have 50000 hours working life. And it contains 64 pieces of lamp beads which can promise the brightness of the effect.

Light weight:

It has a weight of 8.5 kilograms and a thickness of 7cm, which is thinner and lighter than other suppliers. The light weight and size of the panel is better for rental business.

Personalized customization:

We can provide the size of floor tiles that you want according to your needs, allowing the dance floor to accommodate as many people as you want.

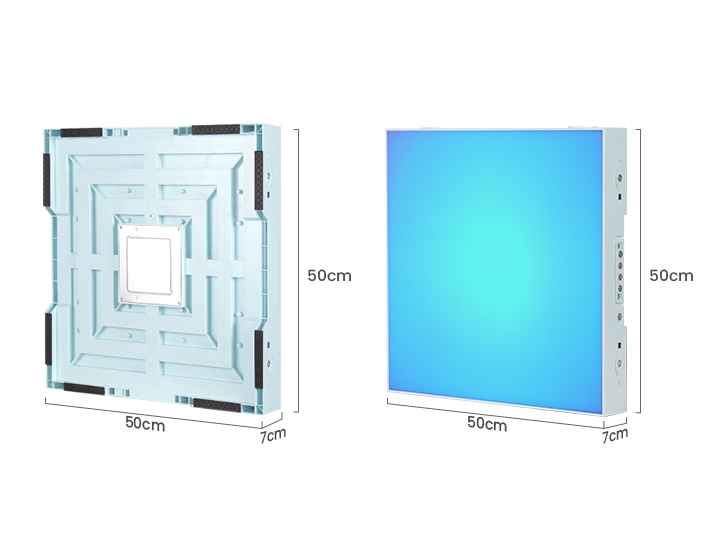

Interactive Dance Floor Size

Professional Design:

Edge design:

It is equipped with a newly upgraded edge design to better prevent slipping and falling.

Great Load capacity:

The surface of the dance floor is fully covered with strong 10mm tempered glass, which can bear 500kg-600kg. The tempered glass is extremely durable with strong impact resistance.

Easy to install:

Fast and convenient installation:

It adopts with a magnetic system, with 18 magnets each panel, which present a better performance in the stability of the connecting signal and power passing. Also, more built-in magnets in the panels make it possible to achieve the one-second installation.

Save time and labor costs:

With the help of the magnetic system greatly, the installation won’t be a problem anymore. It saves time and labor costs. All the installation can be finish in 8 minutes.

Operation manual :

Accurate operation manual and video are provided, to help customers successfully complete installation tasks.

Excellent Control System:

Multiple control methods:

The dance floor has three different types of control mode, including the remote control, DMX control and computer control .

The functions of the control system:

These multiple control systems make it more convenient and much easier to change the patterns and colors. The included remote controller with 12 buttons make it easy for selecting the color, pattern, and selecting the presentation of the effects. It will easily and quickly display the cool and attractive effects to catch people’s eyes.

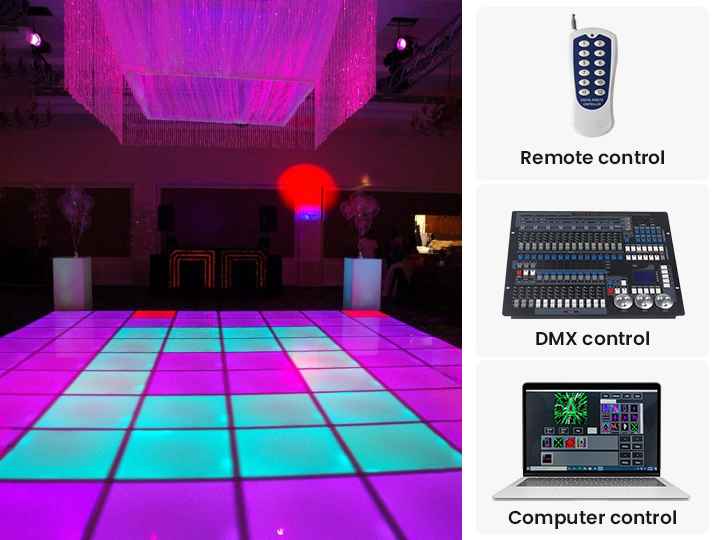

Interactive LED Dance Floor (3)

Multiple Colors and effects:

Brightness and quantity of the light:

It contains 64 lamp beads which can better promise the brightness of the effect.

Various color ranges and effects:

The panel is able to display a wide ranges of patterns and flash, such as solid color, starlit effect, pattern effect and interactive effect, which can better adapt to different scenes and events.

Starlit effect:

Special magic scene , R&D team developed this new special model with 30 kinds of starlit effect, not only change speed, color, brightness, but also different styles. To make it suitable for the events like weddings, proposal events etc.

Solid color:

It can present 7 colors, including yellow, red, green, blue, purple pink and white. It can not only increase or reduce and brightness, but also present the strobe effect. It’s suitable for various kinds of performance stage and dancing parties.

Pattern effect:

It can present mixed color effect, stripe shape, heart shape and gradient effect. A variety of pattern effects can present rich visual presentation, making people in the center of the stage a bright eye catcher.

Interactive effect:

This Led floor has a gravity sensing function. It will switch effects when people dance or walk on it, to show dynamic,cool, modern and fashionable special effects.

Application Fields

It can be used for cutting edge night clubs, dance clubs, corporate events, trade shows (for attracting attention), fashion runways, car shows, bar, stage platforms, drum and percussion platforms, exhibitions, weddings, parties, all kinds of celebration ceremonies and residential settings.



A classic method for LED dance floor packing, which is suitable for permanent installation.

Flight case:

We use flight case as the product packing. A better method for LED dance floor packing. It’s easy for staff of the event to move the whole set of dance floor and to protect the lighted dance floor inside.


  • The Led dance floor, controller, power supply, corner, edges, wire edge,remote are included.
  • Spare parts included.
  • 8pcs in one flight case. /2 pcs in one carton.
  • 1488pcs in one 40 FT container. (Long:12.033m Wide:2.352m)

Advantages of flight case packing:

  • The appearance of the flight case is more beautiful and the weight is lighter.
  • The design of the flight case is professional, so the products in the case will not be damaged during transportation.
  • The excellent material of the flight case has the characteristics of waterproof, shock proof and moisture-proof.
  • The flight case is strong sealing and oxidation resistance.
  • The flight case is solid, relatively anti-collision, and has good resistance to external forces.
  • The service life of the flight case is longer, generally 2~3 times that of the ordinary box.
  • The bottom of the flight case has strong bearing capacity and can bear heavy weight.

10 years of Factory Production Experience

We have our own production plant, which covers an area of 3200 square meters, including a complete workshop, testing area, warehouse and exhibition room. It has more than 20 production lines for led dance floors manufacturing and more than 50 professional workers work for it every day.

The factory have 10 year experience in LED dance floor and LED walls products manufacturing, which has provided more than 100000 LED floors and LED walls for the event industry. The production technology is advanced and the production level is efficient.

Professional Testing Area

The professional testing area is more than 1000 square meters , which can test 1500pcs panels at one time, provide 3 times install testing for each panel, provide more than 72 hours testing for each panel and show different programs on floor for customers to choose.


Contact us:

If you are interested in our products, please feel free to contact us. 24-hour online communication service is available. The sales department is always ready to answer any questions for you. Press “Contact us” to get further information. Or you can leave the detail messages by pressing “Get a quote”. Our specialist will contact you as soon as possible.

Performance in the global market:

We have rich industry experience and constantly provide high-quality products and services to numerous countries and regions. Our product have an excellent performance in overseas market,including the USA, Chile, Canada, Europe, the UK, South Africa and so on. Especially in the United States, our products occupies more than half of the U.S. market. We have cooperated with well-known enterprises such as Google, Twitter and lots of big MV companies.

Warehouse in the USA:

The company has warehouses in Los Angeles and Las Vegas in the US, which is convenient for transportation, enabling customers to obtain products more quickly after placing orders. Customers can visit the warehouse and check the samples on site. It’s no need for paperwork, sea freight and taxes.

After-sales service:

If you have any questions, you can contact our after-sales team at any time. Our professional team will reply to your question in time and provide you with a satisfactory solutions.


We provide three-year warranty for all products. Effectively protect the rights of customers and present a better after-sales service.
Qualification certificate:

It is in compliance with CE, ROHS. It is certified that the LED dance floor is safe to use and thereby it can be sold to overseas.
